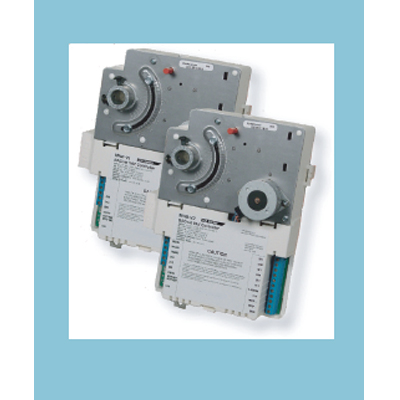

TAC MNB-V1/V2 Access control controller

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Features:

Make: TAC
Model code: MNB-V1/V2
Series: TAC I/A Series
Controller Type: Standalone
Networkable: Yes

Additional info:

The TAC I/A Series® MicroNetTM BACnetTM VAV (Variable Air Volume) Controllers are interoperable controllers with native BACnet MS/TP communications support. All models incorporate: an integral actuator with manual override; an integral, patented, pressure transducer; three universal inputs; Sensor Link (S-Link) support; LED status indication; and over-the-shaft damper mounting.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	TAC
Manufacturer	TAC Satchwell
Category	Access Control>Access control controllers
Model code	MNB-V1/V2
Controller Type	Standalone
Networkable	Yes
Communication Type	RS-485
Universal / Wiegand Reader Interface	Yes
Electrical Specifications	Voltage: 20.4 ~ 30 V AC Power Consumption: 15 VA
Physical Specifications	Dimensions mm: 197 x 159 x 63
Environmental Specifications	Operating Temp ^oC: 0 ~ 55 Operating Humidity %: 5 ~ 95
Additional info	The TAC I/A Series® MicroNetTM BACnetTM VAV (Variable Air Volume) Controllers are interoperable controllers with native BACnet MS/TP communications support. All models incorporate: an integral actuator with manual override; an integral, patented, pressure transducer; three universal inputs; Sensor Link (S-Link) support; LED status indication; and over-the-shaft damper mounting.
