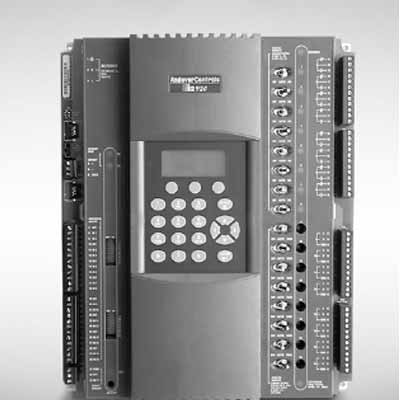

TAC b3800/3804 Access control controller

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

TAC b3800/3804 Access control controller

Features:

Make: TAC
Model code: b3800/3804
Series: Continuum Series
Controller Type: Standalone
Networkable: Yes

Additional info:

The b3800, designed for stand-alone equipment control of Roof Top or Air Handling Units, features eight Universal Inputs, one Smart Sensor/Room Sensor input, plus eight program controlled Digital Outputs.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	TAC
Manufacturer	TAC Satchwell
Category	Access Control>Access control controllers
Model code	b3800/3804
Controller Type	Standalone
Networkable	Yes
Communication Type	RS-485
Onboard No/Type of Inputs / Outputs	8 inputs, 8 outputs
Universal / Wiegand Reader Interface	Yes
Electrical Specifications	Voltage: 24 V AC Power Consumption: 25 VA
Physical Specifications	Dimensions mm: 229 x 153 x 54 Weight g: 610
Environmental Specifications	Operating Temp ^oC: 0 ~ 49 Operating Humidity %: 10 ~ 95
Additional info	The b3800, designed for stand-alone equipment control of Roof Top or Air Handling Units, features eight Universal Inputs, one Smart Sensor/Room Sensor input, plus eight program controlled Digital Outputs.
