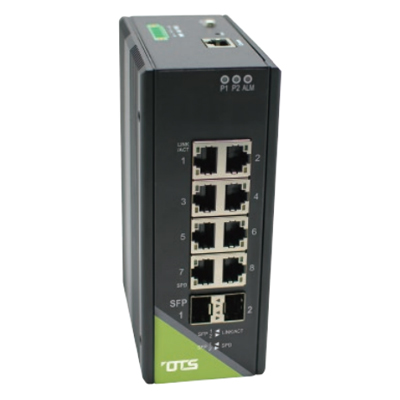

OT Systems IET8222MH-S-DR hardened managed 10 port Ethernet switch

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

OT Systems IET8222MH-S-DR hardened managed 10 port Ethernet switch

Features:

Make: OT Systems
Model code: IET8222MH-S-DR
POE: Yes
Video inputs / ports: 10 channels
TX/RX: TX

Additional info:

OT Systems IET8222MH-S-DR is a hardened managed Ethernet switch offering eight 10/100/1000Mbps copper twisted-pair ports plus two 100/1000Mbps SFP combo ports. It supports wide range dual DC power inputs for flexible selection of power supply or system selection and no service interruption in case of power supply failure. It features Auto-MDI/MDI-X, Auto-negotiation, and L2 wire-speed switching. It is ideal for reliable, secure and affordable transmission network working in severe and mission-critical environments for applications of surveillance systems, factory automation, intelligent transportation systems and industrial Ethernet.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	OT Systems
Manufacturer	OT Systems
Category	CCTV>CCTV Switchers & Switches
Model code	IET8222MH-S-DR
POE	Yes
Video inputs / ports	10 channels
TX/RX	TX
Physical Specifications	Dimensions mm: 60 x 109 x 154 Weight g: 1,500
Electrical Specifications	Voltage: 12 ~ 58 V DC Power Consumption: 12.5 W
Environmental Specifications	Operating Temperature ^oC: -40 ~ +75 C (-40 ~ +167 F) Protection: IP30 Operating Humidity %: 5 ~ 95
Additional info	OT Systems IET8222MH-S-DR is a hardened managed Ethernet switch offering eight 10/100/1000Mbps copper twisted-pair ports plus two 100/1000Mbps SFP combo ports. It supports wide range dual DC power inputs for flexible selection of power supply or system selection and no service interruption in case of power supply failure. It features Auto-MDI/MDI-X, Auto-negotiation, and L2 wire-speed switching. It is ideal for reliable, secure and affordable transmission network working in severe and mission-critical environments for applications of surveillance systems, factory automation, intelligent transportation systems and industrial Ethernet.
