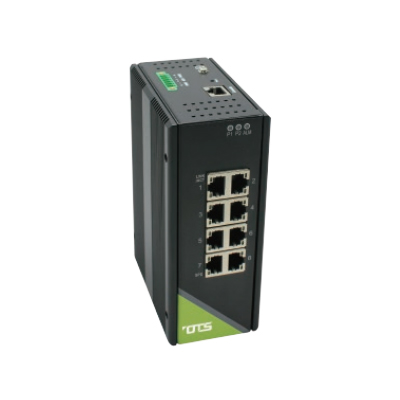

OT Systems IET8100M-DR industrial managed 8 port Ethernet switch

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

OT Systems IET8100M-DR industrial managed 8 port Ethernet switch

Features:

Make: OT Systems
Model code: IET8100M-DR
POE: Yes
Video inputs / ports: 8 channels
TX/RX: TX

Additional info:

OT Systems IET8100M-DR is an industrial managed Ethernet switch offering eight 10/100Mbps copper twisted-pair ports. It supports wide range dual DC power inputs for flexible selection of power supply or system and no service interruption in case of power supply failure. It features Auto-MDI/MDI-X, Auto-negotiation, and L2 wire-speed switching. It is ideal for organisations requiring reliable, secure and affordable transmission network working in harsh and mission-critical environments.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	OT Systems
Manufacturer	OT Systems
Category	CCTV>CCTV Switchers & Switches
Model code	IET8100M-DR
POE	Yes
Video inputs / ports	8 channels
TX/RX	TX
Physical Specifications	Dimensions mm: 60 x 109 x 154 Weight g: 1,500
Electrical Specifications	Voltage: 12 ~ 58 V DC Power Consumption: 8.1 W
Environmental Specifications	Operating Temperature ^oC: -10 ~ +60 C (14 ~ 140 F) Protection: IP30 Operating Humidity %: 5 ~ 95
Additional info	OT Systems IET8100M-DR is an industrial managed Ethernet switch offering eight 10/100Mbps copper twisted-pair ports. It supports wide range dual DC power inputs for flexible selection of power supply or system and no service interruption in case of power supply failure. It features Auto-MDI/MDI-X, Auto-negotiation, and L2 wire-speed switching. It is ideal for organisations requiring reliable, secure and affordable transmission network working in harsh and mission-critical environments.
