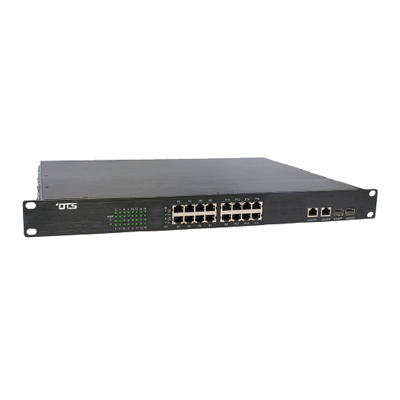

OT Systems ET16122Pp-S Ethernet switch

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Features:

Make: OT Systems
Model code: ET16122Pp-S
Switcher Type: IP
POE: Yes
TX/RX: TX

Additional info:

OT Systems ET16122Pp-S is an unmanaged 16-port 10/100Base-TX (PoE+) and 2-port 10/100/1000Base-T/SFP combo ethernet switch. It supports IEEE802.3at PoE+ (30W per port) and external SFP. The RJ45 port supports 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto MDI/MDI-X, whereas, the combo RJ45 port supports 10/100/1000MbpsFull/Half-duplex, Auto-Negotiation, and Auto MDI/MDI-X.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	OT Systems
Manufacturer	OT Systems
Category	CCTV>CCTV Switchers & Switches
Model code	ET16122Pp-S
Switcher Type	IP
POE	Yes
TX/RX	TX
Termination	RJ45
Physical Specifications	Dimensions mm: 433 x 350 x 44 Weight g: 3,300
Electrical Specifications	Voltage: 100 ~ 240 V AC Power Consumption: 12 W
Environmental Specifications	Operating Temperature ^oC: 0 ~ 50 C (32 ~ 122 F) Operating Humidity %: 5 ~ 95
Additional info	OT Systems ET16122Pp-S is an unmanaged 16-port 10/100Base-TX (PoE+) and 2-port 10/100/1000Base-T/SFP combo ethernet switch. It supports IEEE802.3at PoE+ (30W per port) and external SFP. The RJ45 port supports 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto MDI/MDI-X, whereas, the combo RJ45 port supports 10/100/1000MbpsFull/Half-duplex, Auto-Negotiation, and Auto MDI/MDI-X.
