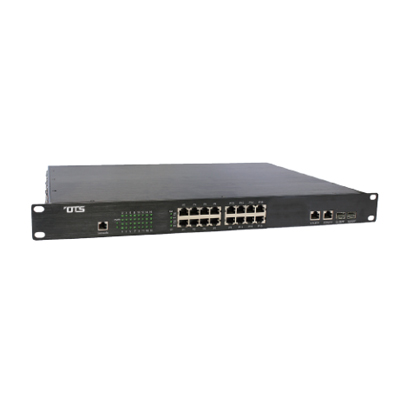

OT Systems ET16122M-S web-smart Ethernet switch

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

OT Systems ET16122M-S web-smart Ethernet switch

Features:

Make: OT Systems
Model code: ET16122M-S
Video inputs / ports: 18 channels
TX/RX: TX
Dimensions mm: 433 x 345 x 44

Additional info:

OT Systems ET16122M-S is a web-smart Ethernet switch offering 16-port 10/100Base-TX plus 2-port 10/100/1000Base-T/SFP Combo. The RJ45 port supports 10/100Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDI-X, while the Combo RJ45 port supports 10/100/1000Mbps Full/Half-duplex, Auto-negotiation, Auto MDI/MDI-X. The switch also supports external SFP, IGMP snooping V1/V2 as well as 4K MAC address.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	OT Systems
Manufacturer	OT Systems
Category	CCTV>CCTV Switchers & Switches
Model code	ET16122M-S
Video inputs / ports	18 channels
TX/RX	TX
Physical Specifications	Dimensions mm: 433 x 345 x 44 Weight g: 2,600
Electrical Specifications	Voltage: 100 ~ 240 V AC Power Consumption: 12 W
Environmental Specifications	Operating Temperature ^oC: 0 ~ 50 C (32 ~ 122 F) Operating Humidity %: 5 ~ 95
Additional info	OT Systems ET16122M-S is a web-smart Ethernet switch offering 16-port 10/100Base-TX plus 2-port 10/100/1000Base-T/SFP Combo. The RJ45 port supports 10/100Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDI-X, while the Combo RJ45 port supports 10/100/1000Mbps Full/Half-duplex, Auto-negotiation, Auto MDI/MDI-X. The switch also supports external SFP, IGMP snooping V1/V2 as well as 4K MAC address.
