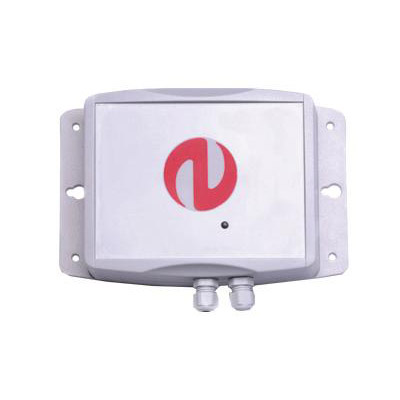

Idesco Idesco Controller Unit 2,4 Ghz wireless communication

Technical Specification

Features:
  • Make: Idesco
  • Model code: Idesco Controller Unit
  • Controller Type: Standalone/Networkable
  • Networkable: Yes
  • Communication Type: Ethernet (RJ45)
Read more
Additional info:

Idesco Controller Unit (ICU) is a unit for connecting and managing both wireless and wired readers. The operating frequency is 2,4 Ghz (wireless communication). Memory is 32 MB SDRAM, 4 MB NOR Flash, 128 MB NAND Flash, Inputs are 3 x logic level input and Outputs are 1 x door control, 3 x FET open drain.

Read more
Make Idesco
Manufacturer Idesco
Model code Idesco Controller Unit
Controller Type Standalone/Networkable
Networkable Yes
Communication Type Ethernet (RJ45)
Universal / Wiegand Reader Interface Yes
Reader Max. Distance m 200
Electrical Specifications Voltage: 10 ~ 25 V DC
Physical Specifications Dimensions mm: 129 x 193 x 52
Environmental Specifications Operating Temp oC: -30 ~ +60
Protection: IP67
Additional info

Idesco Controller Unit (ICU) is a unit for connecting and managing both wireless and wired readers. The operating frequency is 2,4 Ghz (wireless communication). Memory is 32 MB SDRAM, 4 MB NOR Flash, 128 MB NAND Flash, Inputs are 3 x logic level input and Outputs are 1 x door control, 3 x FET open drain.
