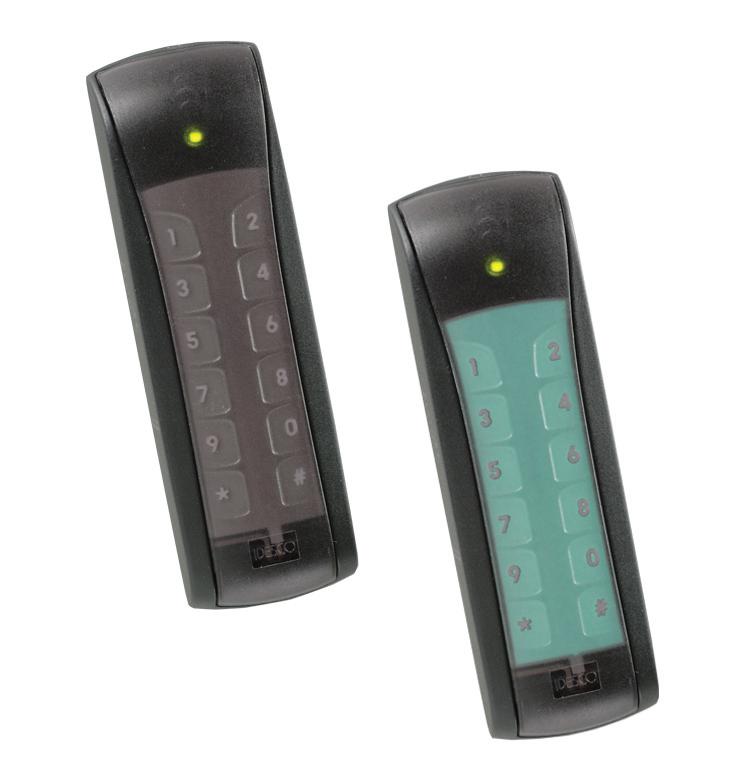

Idesco Access 7 Cpin Illuminatum pin pad reader with a lighted keypad

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Idesco Access 7 Cpin Illuminatum pin pad reader with a lighted keypad

Features:

Make: Idesco
Model code: Access 7 Cpin Illuminatum
Reader Type: Contact
Standalone/ Networkable: Standalone
IP Rating: IP47

Additional info:

Access 7 Cpin Illuminatum with a lighted keypad is a user-friendly choice for environments without a light source. The keypad area of the reader is visible only after activation by a contactless RFID transponder. The keypad is not lighted all the time, so the reader does not attract unnecessary attention in the dark.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Idesco
Manufacturer	Idesco Oy
Category	Access Control>Access control readers
Model code	Access 7 Cpin Illuminatum
Reader Type	Contact
Standalone/ Networkable	Standalone
IP Rating	IP47
Keypad Integrated	Yes
LED / Beep	LED / Beep
Wiegand Interface	Yes
Clock-and-Data Interface	Yes
Electrical Specifications	Voltage: 24 V DC Power Consumption: 100 mA
Physical Specifications	Dimensions mm: 138 x 44 x 24
Environmental Specifications	Operating Temp ^oC: -40 ~ +55
Protection	Vandal & Weather Resistant
Additional info	Access 7 Cpin Illuminatum with a lighted keypad is a user-friendly choice for environments without a light source. The keypad area of the reader is visible only after activation by a contactless RFID transponder. The keypad is not lighted all the time, so the reader does not attract unnecessary attention in the dark.
