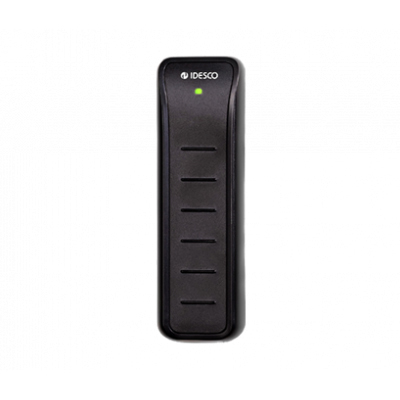

Idesco 7 C 2.0 MIFARE UID reader

Technical Specification

Features:
  • Make: Idesco
  • Model code: 7 C 2.0
  • Reader Type: Mifare
  • IP Rating: IP67, IP54
  • LED / Beep: Three-colour (LED modes can also be configured) / Buzzer
Read more
Additional info:

Durable and reliable access control reader supporting Mifare® Classic technology Extremely low power consumption – up to 60 % more energy-efficient Eco-sensitive construction Highly configurable Open technology: no more proprietary limit on who you buy cards and controllers from, no device supplier or technology dependencies

Read more
Make Idesco
Manufacturer Idesco
Model code 7 C 2.0
Reader Type Mifare
IP Rating IP67, IP54
LED / Beep Three-colour (LED modes can also be configured) / Buzzer
Colour Black
Electrical Specifications Voltage: +10 .... +30 VDC
Physical Specifications Dimensions mm: 95 x 62 x 24
Environmental Specifications Operating Temp oC: -40 ~ +55 C (-40 ~ +131 F)
Protection IP67, IP54, IK-10, IK-09
Additional info
  • Durable and reliable access control reader supporting Mifare® Classic technology
  • Extremely low power consumption – up to 60 % more energy-efficient
  • Eco-sensitive construction
  • Highly configurable
  • Open technology: no more proprietary limit on who you buy cards and controllers from, no device supplier or technology dependencies
Download PDF version
