HID RKLB40 smart card reader – wall switch keypad with biometric

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

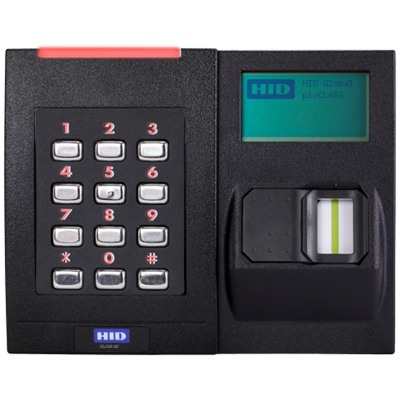

HID RKLB40 smart card reader – wall switch keypad with biometric

Features:

Make: HID
Model code: RKLB40
Series: iCLASS SE
Reader Type: Smart Card
IP Rating: IP55

Additional info:

Adaptable – Interoperable with a growing range of technologies (iCLASS Seos®, iCLASS SE, iCLASS®, MIFARE® Classic, MIFARE DESFire®EV1) and form factors. Powerfully Secure – The iCLASS SE platform’s Secure Identity Object® (SIO®) data model provides an extra layer of encryption for additional protection of identity data Standardized Communications (OSDP) – Uses Open Supervised Device Protocol (OSDP) for secure communications between reader and controller.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	HID
Manufacturer	HID
Category	Access Control>Access control readers
Model code	RKLB40
Reader Type	Smart Card
IP Rating	IP55
Mount Type	Wall mount
Keypad Integrated	Yes
Read Range mm	30 ~ 120 mm
Colour	Black
Wiegand Interface	Yes
Clock-and-Data Interface	Yes
Electrical Specifications	Voltage: 12 V DC
Physical Specifications	Dimensions mm: 122 x 156 x 30 Weight g: 454
Environmental Specifications	Operating Temp ^oC: -10 ~ +50 C (14 ~ 122 F) Operating Humidity %: 5 ~ 95
Additional info	Adaptable – Interoperable with a growing range of technologies (iCLASS Seos®, iCLASS SE, iCLASS®, MIFARE® Classic, MIFARE DESFire®EV1) and form factors. Powerfully Secure – The iCLASS SE platform’s Secure Identity Object® (SIO®) data model provides an extra layer of encryption for additional protection of identity data Standardized Communications (OSDP) – Uses Open Supervised Device Protocol (OSDP) for secure communications between reader and controller.
