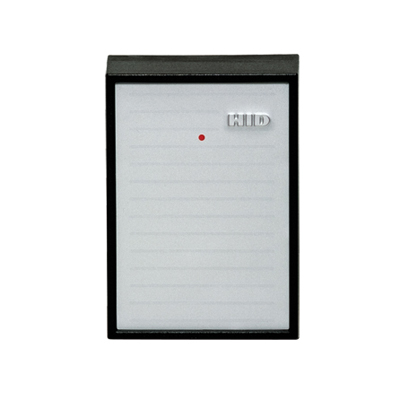

HID 230

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Features:

Make: HID
Model code: 230
Series: Dorado Series
Reader Type: Proximity
Standalone/ Networkable: Standalone

Additional info:

HID's Combination/Transition Readers provide a single reader that simultaneously supports both magnetic stripe and proximity technologies. When a PIN is needed, HID also offers a single reader with keypad that supports magnetic stripe, proximity, and PIN use. The combination/transition readers are compatible with HID's EMPI and Standard 10 or 12 digit ABA/ANSI/ISO magnetic stripe cards. It will also read up to the first 64 bits of any customer-encoded ABA cards. The readers are also compatible with HID Proximity formats up to 36 bits and Dorado EMPI proximity formats.Only available in the US.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	HID
Manufacturer	HID
Category	Access Control>Access control readers
Model code	230
Reader Type	Proximity
Standalone/ Networkable	Standalone
Mount Type	Surface mount
Read Range mm	16 ~ 20 mm
LED / Beep	LED / Beep
Colour	Black
Wiegand Interface	Yes
Clock-and-Data Interface	Yes
Electrical Specifications	Power Consumption: 75mA
Physical Specifications	Dimensions mm: 17.95 x 11.81 x 4.49
Environmental Specifications	Operating Temp ^oC: -35 ~ +66 Operating Humidity %: 5 ~ 95
Additional info	HID's Combination/Transition Readers provide a single reader that simultaneously supports both magnetic stripe and proximity technologies. When a PIN is needed, HID also offers a single reader with keypad that supports magnetic stripe, proximity, and PIN use. The combination/transition readers are compatible with HID's EMPI and Standard 10 or 12 digit ABA/ANSI/ISO magnetic stripe cards. It will also read up to the first 64 bits of any customer-encoded ABA cards. The readers are also compatible with HID Proximity formats up to 36 bits and Dorado EMPI proximity formats. Only available in the US.
