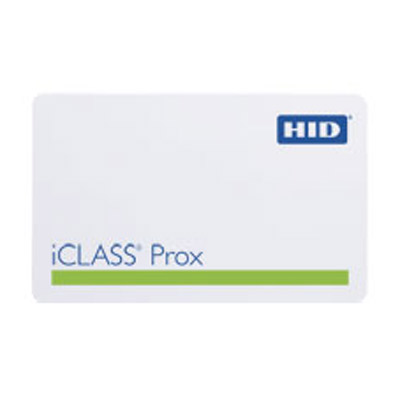

HID 202X iCLASS Prox Card Access control card/ tag/ fob

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

HID 202X iCLASS Prox Card Access control card/ tag/ fob

Features:

Make: HID
Model code: 202X iCLASS Prox Card
Series: iCLASS Series
Card/ Tag/ Fob: Card
Technology Type: Smart Card

Additional info:

The iCLASS Prox Card combines iCLASS 13.56 MHz contactless read/write smart card and Prox 125 kHz proximity technology on a single card with the ability to add magnetic stripe, barcode, and anticounterfeiting features including custom artwork or a photo identification directly on the credential. iCLASS technology ensures high security with mutual authentication, encrypted data transfer, and 64-bit diversified keys for read/write capabilities. Available in 2k bit (256 Byte), 16k bit (2K Byte) or 32k bit (4K Byte) configurations. Add a magnetic stripe, barcode, anti-counterfeiting, or photo ID.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	HID
Manufacturer	HID
Category	Access Control>Access control cards/ tags/ fobs
Model code	202X iCLASS Prox Card
Card/ Tag/ Fob	Card
Technology Type	Smart Card
Material	PVC
ISO size Printable	Yes
Operating Frequency MHz	13.56
Transaction Time Sec	<100 ms typical sec transaction time
Physical Specifications	Dimensions mm: 54 x 85.7 x 0.84 Weight g: 6.8
Environmental Specifications	Operating Temp ^oC: -40 ~ +70 Operating Humidity %: 5 ~ 95
Additional info	The iCLASS Prox Card combines iCLASS 13.56 MHz contactless read/write smart card and Prox 125 kHz proximity technology on a single card with the ability to add magnetic stripe, barcode, and anticounterfeiting features including custom artwork or a photo identification directly on the credential. iCLASS technology ensures high security with mutual authentication, encrypted data transfer, and 64-bit diversified keys for read/write capabilities. Available in 2k bit (256 Byte), 16k bit (2K Byte) or 32k bit (4K Byte) configurations. Add a magnetic stripe, barcode, anti-counterfeiting, or photo ID.
Download PDF version Download PDF version
