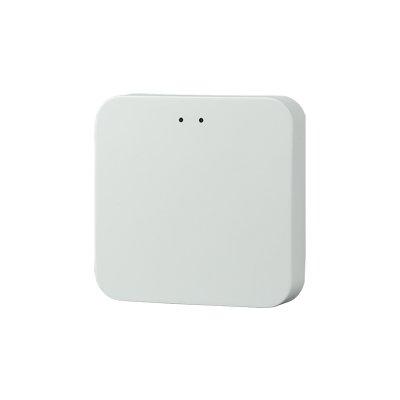

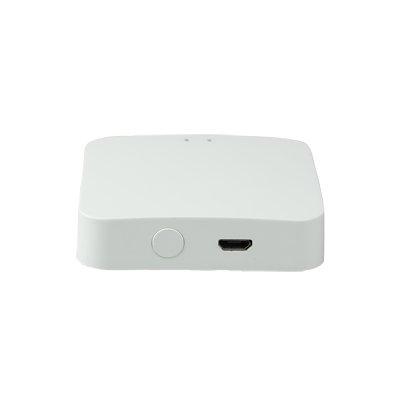

DNAKE MIR-GW200-TY Smart Hub

Technical Specification

Features:

Make: DNAKE
Model code: MIR-GW200-TY
Control Panels & Accessories: Yes
Wireless: Yes
Dimensions mm: 60 x 60 x 15

Additional info:

Adopt standard ZigBee 3.0 protocol and Bluetooth Sig Mesh protocol Wi-Fi network connectivity with Control Panel and DNAKE Smart Life APP Add up to 32 sub-devices One-click networking: support multiple devices to be added at the same time, simplify the tedious network distribution steps, and make the device networking operation more user-friendly Customized scenes and smart linkage Compact and lightweight design

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	DNAKE
Manufacturer	DNAKE
Category	Intruder Alarms>Intruder alarm system control panels & accessories
Model code	MIR-GW200-TY
Control Panels & Accessories	Yes
Wireless	Yes
Physical Specifications	Dimensions mm: 60 x 60 x 15
Environmental Specifications	Operating Temp ^oC: -10 ~ +55 C 14 ~ 131 F)
Additional info	Adopt standard ZigBee 3.0 protocol and Bluetooth Sig Mesh protocol Wi-Fi network connectivity with Control Panel and DNAKE Smart Life APP Add up to 32 sub-devices One-click networking: support multiple devices to be added at the same time, simplify the tedious network distribution steps, and make the device networking operation more user-friendly Customized scenes and smart linkage Compact and lightweight design
