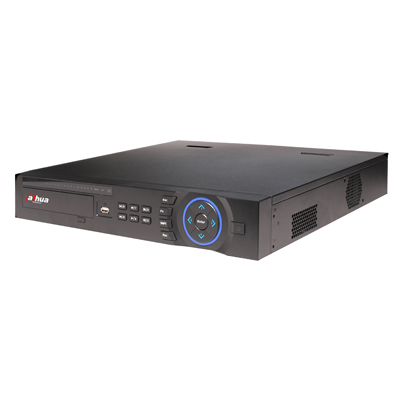

Dahua Technology DH-NVR7464-16P 64-channel network video recorder

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: DH-NVR7464-16P
  • Recording Mode: Real Time / Timelapse / Event
  • Video inputs: 64
  • Hardware solution: Yes
Read more
Additional info:

H.264H/H.264/MJPEG dual codec decoding Max 256Mbps incoming bandwidth HDMI/VGA/TV simultaneous video output ONVIF Version 2.3 conformance 3D intelligent positioning with Dahua PTZ camera Support 4 SATA HDDs up to 16TB, 1 eSATA port, 3 USB2.0 Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

Read more
Make Dahua Technology
Manufacturer Dahua Technology Ltd
Model code DH-NVR7464-16P
Recording Mode Real Time / Timelapse / Event
Video inputs 64
Hardware solution Yes
Inbuilt multiplexer Yes
Type of multiplexer functions Recording, Playback, Viewing
Recording system HDD
Storage capacity 16 TB
Secondary storage USB
Resolution 1920 x 1080
PTZ control Yes
Alarm Handling 16 in, 6 out
Video motion detection Yes
Multiple client support Yes
Operating system Embedded LINUX
Voltage 100 ~ 240 V AC
Power consumption (W) 40
Weight (kg) 5
Dimensions (mm) 440 x 407 x 70
Operating temperature (°C) -10 ~ +55 C (14 ~ 131 F)
Operating humidity (%) 10 ~ 90
Additional info
  • H.264H/H.264/MJPEG dual codec decoding
  • Max 256Mbps incoming bandwidth
  • HDMI/VGA/TV simultaneous video output
  • ONVIF Version 2.3 conformance
  • 3D intelligent positioning with Dahua PTZ camera
  • Support 4 SATA HDDs up to 16TB, 1 eSATA port, 3 USB2.0
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Download PDF version
