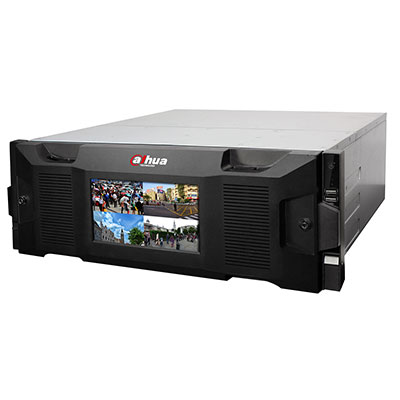

Dahua Technology DH-NVR724 R-256 super network video recorder

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology DH-NVR724 R-256 super network video recorder

Features:

Make: Dahua Technology
Model code: DH-NVR724 R-256
Video inputs: 256
Hardware solution: Yes
Inbuilt multiplexer: Yes

Additional info:

Max 256channel IP cameras connection Max 512Mbps incoming bandwidth Up to 128ch@1080P, 256ch@720Prealtime recording 2 HDMI / 1 HDMI +1 VGA (Optional: 1 VGA+10 HDMI) Support 24 hot-swap HDDs Support RAID0/1/5/6/10/50/60 Support N+Mhot standby Support iSCSI &Mini SAS to expand storage space

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology Ltd
Category	CCTV>Network video recorders (NVRs)
Model code	DH-NVR724 R-256
Video inputs	256
Hardware solution	Yes
Inbuilt multiplexer	Yes
Storage capacity	96 TB
Secondary storage	USB
PTZ control	Yes
Electrical Specifications	Voltage: 100 ~ 240 V AC Power consumption (W): 200 ~ 400
Physical Specifications	Weight (kg): 29 Dimensions (mm): 480 x 494 x 175
Environmental Specifications	Operating temperature (°C): 0 ~ 40 C (32 ~ 104 F) Operating humidity (%): 10 ~ 80
Additional info	Max 256channel IP cameras connection Max 512Mbps incoming bandwidth Up to 128ch@1080P, 256ch@720Prealtime recording 2 HDMI / 1 HDMI +1 VGA (Optional: 1 VGA+10 HDMI) Support 24 hot-swap HDDs Support RAID0/1/5/6/10/50/60 Support N+Mhot standby Support iSCSI &Mini SAS to expand storage space
