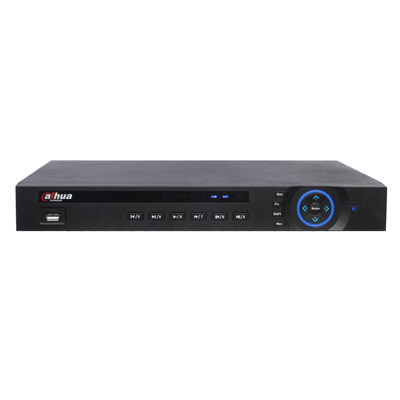

Dahua Technology DH-NVR5232-8P 32-channel network video recorder

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology DH-NVR5232-8P 32-channel network video recorder

Features:

Make: Dahua Technology
Model code: DH-NVR5232-8P
Recording Mode: Real Time / Timelapse / Event
Video inputs: 32
Hardware solution: Yes

Additional info:

H.264/MJPEG dual codec decoding Up to 5Mp resolution Max 160Mbps incoming bandwidth HDMI/VGA simultaneous video output 3D intelligent positioning with Dahua PTZ camera ONVIF Version 2.3 conformance

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology Ltd
Category	CCTV>Network video recorders (NVRs)
Model code	DH-NVR5232-8P
Recording Mode	Real Time / Timelapse / Event
Video inputs	32
Hardware solution	Yes
Inbuilt multiplexer	Yes
Type of multiplexer functions	Recording, Playback, Viewing
Recording system	HDD
Storage capacity	8 TB
Secondary storage	USB
Resolution	1920 x 1080
PTZ control	Yes
Alarm Handling	8 in, 3 out
Video motion detection	Yes
Multiple client support	Yes
Operating system	Embedded LINUX
Electrical Specifications	Voltage: 12 V DC Power consumption (W): 20
Physical Specifications	Weight (kg): 2.3 Dimensions (mm): 375 x 285 x 50
Environmental Specifications	Operating temperature (°C): -10 ~ +55 C (14 ~ 131 F) Operating humidity (%): 10 ~ 90
Additional info	H.264/MJPEG dual codec decoding Up to 5Mp resolution Max 160Mbps incoming bandwidth HDMI/VGA simultaneous video output 3D intelligent positioning with Dahua PTZ camera ONVIF Version 2.3 conformance
