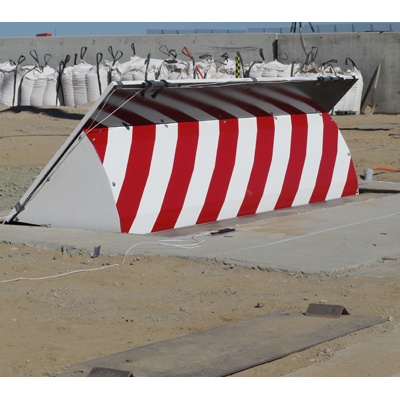

Delta Scientific HD200 fast close barrier

Product Profile

Delta Scientific's HD200 features a 0.63 second emergency fast operation (EFO). Created for high traffic, densely-populated locations that need high speed open/close rates to get many vehicles in and out as well as very fast closing rates to protect the people, the HD200 highlights a very fast open/close cycle of 2-5 seconds.

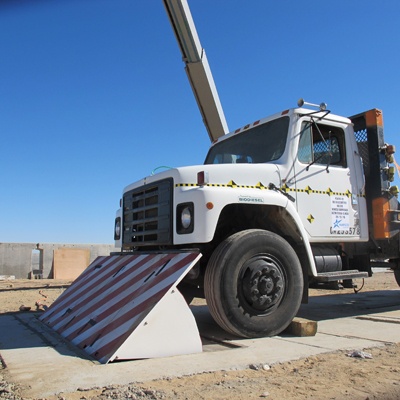

The fast operating HD200 barrier will bring to a full stop a 7.5 ton (6803.9 kg) medium duty truck travelling 30 mph (48.3 kph) in less than 3.3 feet (1 meter). The truck rebound after impacting the barrier was an incredible 11.5 feet (3.5 m) in its crash test. This results in a crash rating of ASTM M30/P1.

With its 0.63 second EFO speed, the HD200 barrier will stop and destroy a vehicle moving at 30 mph (48.3 kph), equivalent to 44 feet (13.4 m) per second, if triggered within 50 feet (15.2 m) of the barrier. Especially in high traffic, high volume locations, the barrier is open much of the time, letting vehicles through. Therefore, when the location is heavily populated as well, the barrier must open frequently but, as importantly, close quickly.

With a 24-inch (61 cm) shallow foundation and fully enclosed, flush mount design, the HD200 obviates the concerns of interference with buried pipes, power lines and fiber optic communication lines in urban applications. The shallow foundation also reduces installation complexity, time, materials and corresponding costs. The HD200 is perfect for high water table locations and areas with corrosive soils. It provides low maintenance as its totally enclosed face is easily removed for access.

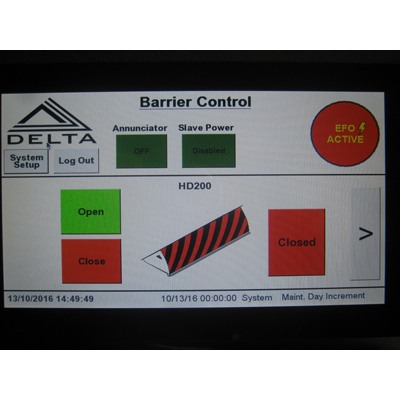

Leveraging the latest technologies, the HD200’s breakthrough EFO can be remotely controlled via fiber optics, touch screen control panels, NEMA rated control button panels and simple key switches. The HD200 barrier also features a full range of diagnostic indicators for early detection of any difficulties.

Projected life expectancy of the HD200 is 20+ years.

Read more

Technical Specification

Make Delta Scientific
Manufacturer Delta Scientific Corporation
Model code HD200
Type of barrier Vehicle Barrier
Certification level ASTM M30/P1
Gross vehicle weight 15,000 pounds
Crash speed 30 mph
Operating speed 2-5 second (0.63 second EFO)
Additional info
  • Delta Scientific's HD200 features a 0.63 second emergency fast operation (EFO).
  • HD200 highlights a very fast open/close cycle of 2-5 seconds.
  • The HD200 is perfect for high water table locations and areas with corrosive soils.
  • HD200’s breakthrough EFO can be remotely controlled via fiber optics, touch screen control panels, NEMA rated control button panels and simple key switches.
  • Projected life expectancy of the HD200 is 20+ years.
