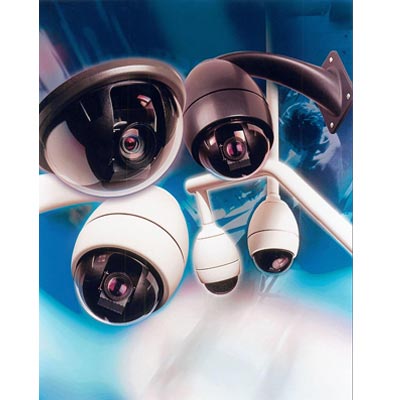

Bosch Dome cameras for any application - including autotracking

Product Profile

Bosch’s latest AutoDomes come in so many variants, there’s one for virtually any application.  There’s even an innovative AutoTrack feature that automatically follows intruders if required.

The G3B AutoDomes are already the standard in retail and general surveillance offering fast PTZ and quiet reliable operation, plus a host of features such as automated guard tours, pre-set positions, alarms etc.  They are now available with up to 300x zoom (25x optical, 12x digital) with Digital Image Stabilization in small, easy-to-install kits, making them inconspicuous, effective deterrents.  Choose from 25x or 18x Colour or Day/Night Versions or B/W.

The EnviroDome is ideal for general outdoor or indoor use – its fully weatherproof and can automatically switch from colour to high sensitivity monochrome when light levels drop for day/night operation.

The enhanced FlexiDomeXT offers full vandal and water resistance with a high impact polycarbonate dome that can withstand 120 lbs of force plus shock resistant mountings - for the same cost as a standard ruggedised camera.  Its IP66 ratings makes them ideal for rugged, wet or dirty conditions in factories, car parks, subways, forecourts, car washes, etc.  The bubble is also specially coated to prevent water droplets forming.

Plus standard FlexiDomes in medium and high resolution – and a huge range of accessories and options to meet any application.
Read more

Technical Specification

Make Bosch
Manufacturer Bosch Security Systems
Model code LTC 1361
Series FlexiDome Series
Chip Inch Size 1/4
Colour Type Colour
Resolution TVL 570
Sensitivity lux 0.1
Dome Type Continuous Rotation
Indoor/Outdoor Indoor/Outdoor
Mount Type Ceiling, Wall
Electrical Specifications Voltage: 12 ~ 24 V AC
Power Consumption: 2 W
Focal length 2.8 ~ 6.0
Rotation Angleso 360 pan, 90 tilt
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/50 (1/60) ~ 1/100,000
S/ N (Signal/ Noise) Ratio dB 48
Synchronisation Line-lock
Signal Mode CCIR/EIA
Video Output 1.0 Vp-p, 75 ohm
Zoom Ratio x25
Network Properties Control: PTZ
Physical Specifications Dimensions mm: 152.4 (Dia) x 114.3
Weight g: 500
Environmental Specifications Operating Temp oC: -30 ~ +50
Protection: IP66
Additional info The FlexiDome series dome cameras include high resolution colour and monochrome camera with an integrated varifocal DC iris lens with line-lock synchronisation, backlight compensation, auto white balance, auto electronic shutter capabilities.  Units can withstand the equivalent of 120 lbs of force and is water and dust protected to IP66.
