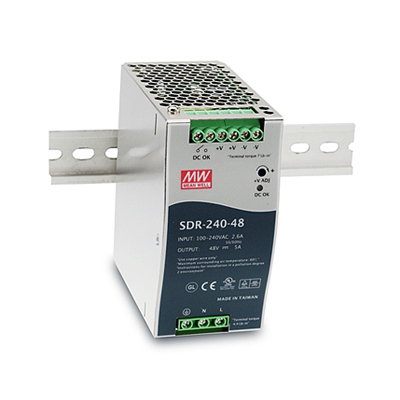

BCDVideo SDR-240-48 240W Single Output Industrial DIN RAIL with PFC Function

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

BCDVideo SDR-240-48 240W Single Output Industrial DIN RAIL with PFC Function

Features:

Make: BCDVideo
Model code: SDR-240-48
Power Consumption: 240W
Operating Temperature C: -25 ~ +70 C (-13 ~ +158 F)
Operating Humidity %: 20 ~ 95

Additional info:

High efficiency 94% and low power dissipation 150% peak load capability Cooling by free air convection Protections: Short circuit / Overload / Over-voltage / Over temperature

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	BCDVideo
Manufacturer	BCDVideo
Category	CCTV>Power supplies & batteries
Model code	SDR-240-48
Power Consumption	240W
Environmental Specifications	Operating Temperature C: -25 ~ +70 C (-13 ~ +158 F) Operating Humidity %: 20 ~ 95
Physical Specifications	Dimension mm: 63 x 125 x 114 Weight g: 1030
Additional info	High efficiency 94% and low power dissipation 150% peak load capability Cooling by free air convection Protections: Short circuit / Overload / Over-voltage / Over temperature
