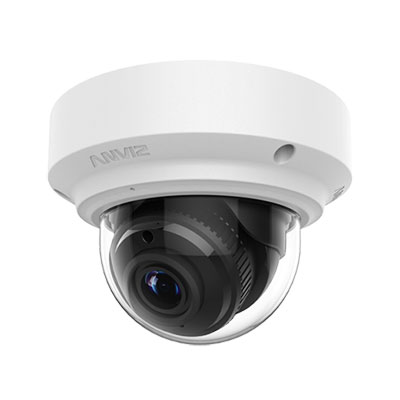

Anviz TopView vari-focal IR fixed dome cameras with x3 auto focus P-Iris lens and advanced P-Iris technology

Product Profile

TopView series fixed dome camera (720P/1080P) are equipped with 3X auto focus P-Iris lens and advanced P-Iris technology to provide better contrast, clarity, resolution and depth of field. With built in IR-cut filter, TopView can display clear image during night. Featuring enhanced WDR, the users can perceive more details in extremely dark and bright environments. The IP66 & IK10 TopView are suitable for monitoring large, open public areas such as police and metro stations, prisons, airports, border patrols, parks and parking lots.

Key features

  • High definition up to 5M
  • Super wide dynamic range
  • 4X Varifocal motorised lens with P-iris
  • Up to 30m Smart IR
  • 3-axis mechanical design
  • Smart edge storage

IP66 and IK10

TopView series is equipped with dust-proof, waterproof and anti-destructive cover to make sure the well function at any time.

Smart focus system

To make an easier installation, OpenView series uses a stepper motor lens, to make sure the installer can remotely control the focal length and focus accurately by adjusting the interface

Super wide dynamic range

Catch more details in both, extremely dark and bright environments

P –Iris

Equipped with P-Iris lens, OpenView series provides the images with better contrast, clarity, resolution and depth of field to users.

Read more

Technical Specification

Make Anviz
Manufacturer Anviz Global Inc.
Model code TO1608-I(Z)(E)
Series TopView
Chip Inch Size 1/3
Resolution TVL 5 MP
HD Yes
Sensitivity lux 0.01
Digital (DSP) Yes
Electrical Specifications Voltage: 12 V DC
Power Consumption: < 12 W
Focal length 2.8 ~ 12
Compression H.264, MJPEG
Electronic Shutter range 1/3 ~ 1/10,000s
S/ N (Signal/ Noise) Ratio dB >54
Built-in IR LED Yes
Network Properties Interface: RJ-45 (10/100/1000Base-T)
Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS
Image Frame Rate: 30 fps
Physical Specifications Dimensions mm: 156 x 110
Weight g: 1,128
Environmental Specifications Operating Temp oC: -30 ~ +60 C (-22 ~ +140 F)
Protection: IP66, IK10
Additional info Anviz Global's TO1608-I(Z)(E) vari focal IR dome camera is part of its TopView series of fixed dome cameras. With built in IR-cut filter, TopView can display clear image during night. The IP66 & IK10 TopView are suitable for monitoring large, open public areas such as police and metro stations, prisons, airports, border patrols, parks and parking lots.
Download PDF version
