Technical Specification

Features:

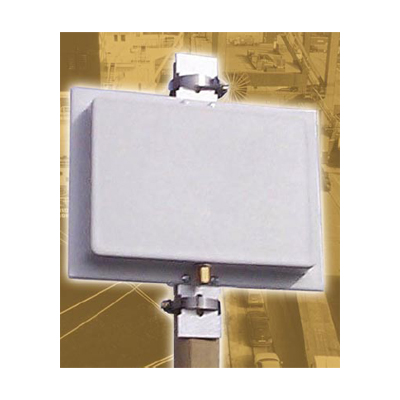

  • Make: VideoComm Technologies
  • Model code: ANT-5821dp
  • Bandwidth MHz: 5.675 GHz
  • Differential Gain %: 21 dBi
  • Dimensions mm: 203 x 292 x 254
Additional info:

Frequency range 5250 ~ +5900Ghz.  Polarization: vertical - linear.  H-plane and E-plane beamwidth 12 degrees.  50 Ohms impedance.  SMA - male antenna input connector.  Includes universal pole mounting bracket and 6 feet of 0.5" low loss microwave cable (SMA-male / N-male).

Read more
Make VideoComm Technologies
Manufacturer VideoComm Technologies
Model code ANT-5821dp
Bandwidth MHz 5.675 GHz
Differential Gain % 21 dBi
Physical Specifications Dimensions mm: 203 x 292 x 254
Weight g: 1.3 kg
Environmental Specifications Protection: All-weather casing
Additional info Frequency range 5250 ~ +5900Ghz.  Polarization: vertical - linear.  H-plane and E-plane beamwidth 12 degrees.  50 Ohms impedance.  SMA - male antenna input connector.  Includes universal pole mounting bracket and 6 feet of 0.5" low loss microwave cable (SMA-male / N-male).
