Technical Specification

Features:

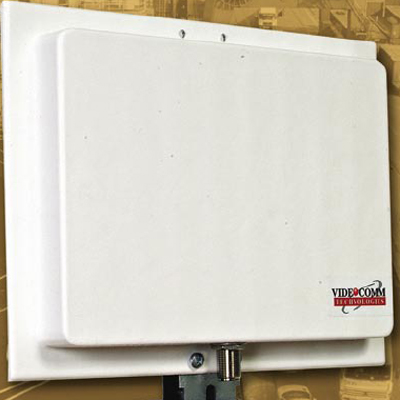

  • Make: VideoComm Technologies
  • Model code: ANT-5814ip
  • Bandwidth MHz: 5.675 GHz
  • Differential Gain %: 14 dBi
  • Dimensions mm: 108 x 108
Additional info:

Frequency range 5250 ~ +5900Ghz.  Polarization: vertical - linear.  H-plane and E-plane beamwidth 35 degrees.  50 Ohms impedance.  VSWR (return loss) < 1.5:1.  Right angle male SMA antenna input connector. Includes universal pole mounting bracket and 5.5" low loss microwave cable (SMA-male / N-male).

Read more
Make VideoComm Technologies
Manufacturer VideoComm Technologies
Model code ANT-5814ip
Bandwidth MHz 5.675 GHz
Differential Gain % 14 dBi
Physical Specifications Dimensions mm: 108 x 108
Weight g: 74
Environmental Specifications Protection: All-weather UV protected casing
Additional info Frequency range 5250 ~ +5900Ghz.  Polarization: vertical - linear.  H-plane and E-plane beamwidth 35 degrees.  50 Ohms impedance.  VSWR (return loss) < 1.5:1.  Right angle male SMA antenna input connector. Includes universal pole mounting bracket and 5.5" low loss microwave cable (SMA-male / N-male).
