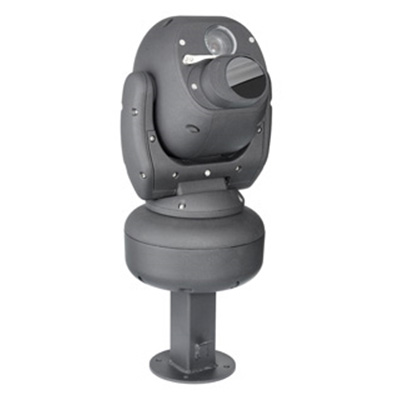

Vicon V-ATDN-36-W vandal resistant, high speed continuous rotation PTZ dual head thermal camera

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Vicon V-ATDN-36-W vandal resistant, high speed continuous rotation PTZ dual head thermal camera

Features:

Make: Vicon
Model code: V-ATDN-36-W
Chip Inch Size: 1/4 inch
Colour Type: Colour / Monochrome
Resolution TVL: 520

Additional info:

The Oculus Ti is a professional, vandal resistant, high speed continuous rotation PTZ dual head thermal camera. The camera offers thermal detection of intruders at long range, day or night, in any weather, with simultaneous optical video output for video verification. As a thermal/optical unit it can also be used to provide temperature indication of fire or thermo graphic applications.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Vicon
Manufacturer	Vicon Industries
Category	CCTV>Dome cameras
Model code	V-ATDN-36-W
Chip Inch Size	1/4 inch
Colour Type	Colour / Monochrome
Resolution TVL	520
Dome Type	PTZ
Sensitivity lux	0.1 lux
Pan Speed ^o/ sec	0 ~ 180 ^o/ sec pan speed
Digital (DSP)	Yes
Tilt Speed ^o/ sec	0 ~ 180 ^o/ sec tilt speed
Electrical Specifications	Voltage: 32 V DC Power Consumption: 5 W
Focal length	3.4 ~ 122.4 mm
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/1 ~ 1/10000s
Signal Mode	PAL
Video Output	VBS: 1.0 Vp-p (sync negative), Y/C
Zoom Ratio	x 36
Environmental Specifications	Protection: IP67
Additional info	The Oculus Ti is a professional, vandal resistant, high speed continuous rotation PTZ dual head thermal camera. The camera offers thermal detection of intruders at long range, day or night, in any weather, with simultaneous optical video output for video verification. As a thermal/optical unit it can also be used to provide temperature indication of fire or thermo graphic applications.
Download PDF version Download PDF version
