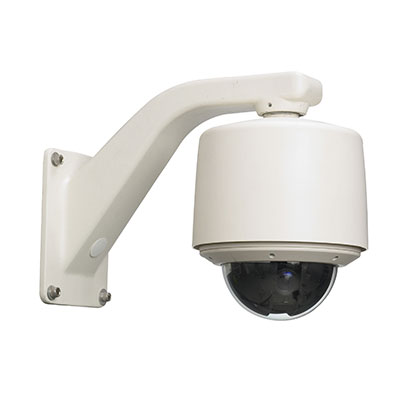

Vicon SVFT-M23 full feature camera dome

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Features:

Make: Vicon
Model code: SVFT-M23
Chip Inch Size: 1/4 inch
Colour Type: Colour / Monochrome
Resolution TVL: 540 TVL

Additional info:

Impact-resistant metal housing and polycarbonate dome provide maximum security All the features of the standard camera dome Available with 23X or 36X camera NTSC and PAL models

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Vicon
Manufacturer	Vicon Industries
Category	CCTV>Dome cameras
Model code	SVFT-M23
Chip Inch Size	1/4 inch
Colour Type	Colour / Monochrome
Resolution TVL	540 TVL
Sensitivity lux	0.01 ~ 1 lux
Dome Type	PTZ
Pan Speed ^o/ sec	0.1 ~ 360 ^o/ sec pan speed
Indoor/Outdoor	Indoor/Outdoor
Digital (DSP)	Yes
Tilt Speed ^o/ sec	0.1 ~ 150 ^o/ sec tilt speed
Mount Type	Pendant mount
Focal length	3.6 ~ 82.8
Presets	79
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
S/ N (Signal/ Noise) Ratio dB	> 50
Synchronisation	Internal / External
Signal Mode	NTSC
Built-in IR LED	Yes
Zoom Ratio	x276
Network Properties	Control: PTZ
Physical Specifications	Dimensions mm: 213 x 152 x 262 Weight g: 4300
Environmental Specifications	Operating Temp ^oC: -34 ~ +74 C (-29 ~ +165 F) Operating Humidity %: 0 ~ 100
Additional info	Impact-resistant metal housing and polycarbonate dome provide maximum security All the features of the standard camera dome Available with 23X or 36X camera NTSC and PAL models
