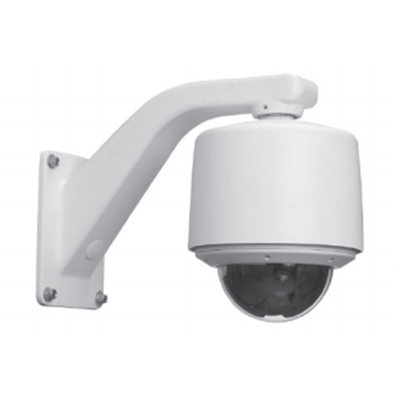

Vicon SVFT-C23C full feature camera dome

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Vicon SVFT-C23C full feature camera dome

Features:

Make: Vicon
Model code: SVFT-C23C
Chip Inch Size: 1/4 inch
Colour Type: Colour / Monochrome
Resolution TVL: 540

Additional info:

Variable-speed drive Video transmission via coaxial, fiber-optic or twisted pair (UTP) 23X or 36X high-resolution color or day/night camera In-ceiling or pendant configurations for indoor or outdoor installations NTSC and PAL models

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Vicon
Manufacturer	Vicon Industries
Category	CCTV>Dome cameras
Model code	SVFT-C23C
Chip Inch Size	1/4 inch
Colour Type	Colour / Monochrome
Resolution TVL	540
HD	Yes
Dome Type	PTZ
Pan Speed ^o/ sec	0.1 ~ 360 ^o/ sec pan speed
Tilt Speed ^o/ sec	0.1 ~ 150 ^o/ sec tilt speed
Indoor/Outdoor	Indoor/Outdoor
Digital (DSP)	Yes
Mount Type	Ceiling, Pendant mount
Electrical Specifications	Voltage: 18 ~ 30 V AC Power Consumption: 24 ~ 50 W
Presets	79
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
S/ N (Signal/ Noise) Ratio dB	> 50
Synchronisation	Internal / External
Signal Mode	PAL
Built-in IR LED	Yes
Zoom Ratio	x276
Network Properties	Control: PTZ
Environmental Specifications	Operating Temp ^oC: 0 ~ 55 C (32 ~ 132 F) Operating Humidity %: 0 ~ 90 (Indoor), 100 (Outdoor)
Additional info	Variable-speed drive Video transmission via coaxial, fiber-optic or twisted pair (UTP) 23X or 36X high-resolution color or day/night camera In-ceiling or pendant configurations for indoor or outdoor installations NTSC and PAL models
