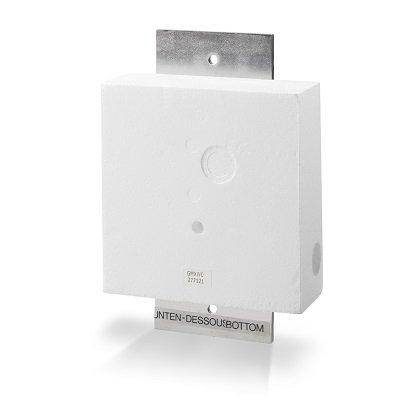

Vanderbilt GMXW0 Wall / Ceiling recess box

Technical Specification

Features:
  • Make: Vanderbilt
  • Model code: GMXW0
  • Dimensions mm: 150 x 50 x 150
Additional info:

The GMXW0 is a mounting kit including a polystyrene mould that sits in the unset concrete. The polystyrene mould is mounted on a metal back plate with tapped mounting holes for the GM7xx seismic detectors. Once the concrete is set, the polystyrene can be carefully removed to expose a recess box. It offers sufficient space to install a GM7xx detector in the wall or the ceiling and provides access for cables via conduit to and from the detector.

Read more
Make Vanderbilt
Manufacturer Vanderbilt Industries
Model code GMXW0
Physical Specifications Dimensions mm: 150 x 50 x 150
Additional info
  • The GMXW0 is a mounting kit including a polystyrene mould that sits in the unset concrete.
  • The polystyrene mould is mounted on a metal back plate with tapped mounting holes for the GM7xx seismic detectors.
  • Once the concrete is set, the polystyrene can be carefully removed to expose a recess box.
  • It offers sufficient space to install a GM7xx detector in the wall or the ceiling and provides access for cables via conduit to and from the detector.
