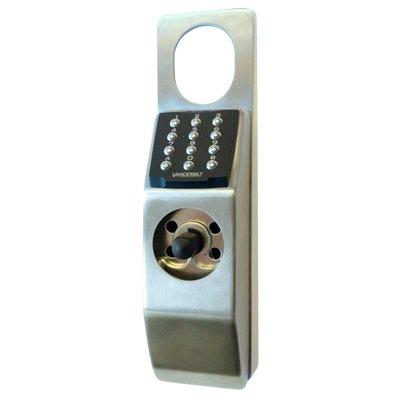

Vanderbilt CD30 Robust & Stylish Mechanical Lock

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Vanderbilt CD30 Robust & Stylish Mechanical Lock

Features:

Make: Vanderbilt
Model code: CD30
Door Type: Interior door type
Material: Stainless steel
No of User Codes: Nine 4-digit codes

Additional info:

CD30 is a battery-powered codelock that fits directly on an interior door. The programming of codes is carried out directly via the keypad. It is possible to manually change the settings to leave the door unlocked if necessary. The batteries used are standard alkaline or lithium cells. The CD30 is suitable for lock cases with a distance of between 105mm and 116mm between the center of the door handle and the center of the lock cylinder. It is designed to fit a Scandinavian lock case.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Vanderbilt
Manufacturer	Vanderbilt Industries
Category	Access Control>Mechanical digital locks
Model code	CD30
Door Type	Interior door type
Material	Stainless steel
No of User Codes	Nine 4-digit codes
Environmental Specifications	Operating Temperature ^oC: 0 ~ 50 C (32 ~ 122 F) Protection: IP30
Electrical Specifications	Voltage: Two Lithium 9V type 6LR61 batteries required
Physical Specifications	Dimensions mm: 245 x 64 x 53 Weight g: 760
Additional info	CD30 is a battery-powered codelock that fits directly on an interior door. The programming of codes is carried out directly via the keypad. It is possible to manually change the settings to leave the door unlocked if necessary. The batteries used are standard alkaline or lithium cells. The CD30 is suitable for lock cases with a distance of between 105mm and 116mm between the center of the door handle and the center of the lock cylinder. It is designed to fit a Scandinavian lock case.
