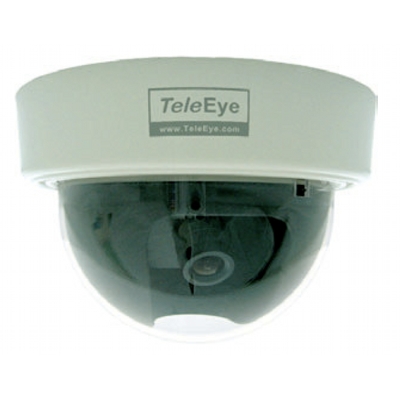

TeleEye DF103 1/3 colour dome camera

Technical Specification

Features:
  • Make: TeleEye
  • Model code: DF103
  • Chip Inch Size: 1/3
  • Colour Type: Colour
  • Resolution TVL: 420
Read more
Make TeleEye
Manufacturer TeleEye Europe Ltd.
Model code DF103
Chip Inch Size 1/3
Colour Type Colour
Resolution TVL 420
Sensitivity lux 0.3
Dome Type Fixed Focus
Electrical Specifications Voltage: 12 V DC
Power Consumption: 200 mA
Focal length 3.6
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/50 (1/60) ~ 1/100,000
S/ N (Signal/ Noise) Ratio dB > 48
Video Output 1.0 Vp-p, 75 Ohms
Physical Specifications Dimensions mm: 110 (Dia) x 70
Weight g: 150
Environmental Specifications Operating Temp oC: -10 ~ +50
Operating Humidity %: 0 ~ 85
