NVT Phybridge Power Supplies

PoLRE24: 24 Port Long Reach single pair UTP PoE (15 Watts) Managed Switch with 110VAC, 500 Watt / 220VAC, 1,000 Watt Power Supply - 1 YR warranty included The PoLRE24 managed switch makes the modernization to IP devices (IoT) simple, secure and cost-effective. When paired with the PhyLink Adapter, this powerful enterprise-grade switch delivers fast Ethernet and PoE over single-pair UTP cable with up to 1,200ft (365m) reach - that’s 4Xs the reach of standard Ethernet switches. The PoLRE24 comes standard with robust power management capabilities and an industry leading, simple to use GUI interface.

PoLRE48: 48 Port Long Reach single pair UTP PoE (15 Watts) Managed Switch with 110VAC, 500 Watt / 220VAC, 1,000 Watt Power Supply - 1 YR warranty included The PoLRE48 managed switch makes the modernization to IP devices (IoT) simple, secure and cost-effective. When paired with the PhyLink Adapter, this powerful enterprise-grade switch delivers fast Ethernet and PoE over single-pair UTP cable with up to 1,200ft (365m) reach - that’s 4Xs the reach of standard Ethernet switches. The PoLRE48 comes standard with robust power management capabilities and an industry leading, simple to use GUI interface.

FLEX8: 8 Port Long Reach 2 or 4 pair UTP PoE++ (50 Watts) Unmanaged Switch with 55VAC, 190 Watt Power Supply - 5 YR warranty included The plug and play FLEX8 unmanaged switch makes the modernization to IP devices (IoT) simple, secure and cost-effective. When paired with the FLEX Adapters, this powerful enterprise-grade switch delivers fast Ethernet and PoE++ over Multi-Pair UTP with up to 2,000ft (610m) reach - that’s 6Xs the reach of standard Ethernet switches.

CLEER24: 24 Port EoC Long Reach PoE+ (30 Watts) Managed Switch with 110 VAC 500 Watt / 220VAC 1,000 Watt Power Supply. Meets EN 50121-4 (Railway/Subway) - 1 YR warranty included The CLEER24 (Coax Leveraged Ethernet Extended Reach) managed switch makes the modernization to IP devices (IoT) simple, secure and cost-effective. When paired with the EC Adapters, this powerful enterprise-grade switch delivers fast Ethernet and PoE+ over coax cable with up to 6,000ft (1,830m) reach - that’s 18Xs the reach of standard Ethernet switches. The CLEER24 comes standard with robust power management capabilities and an industry leading, simple to use GUI interface.

EC10: 10 Port EoC Long Reach PoE+ (30 Watts) Unmanaged Switch with 55VAC, 165 Watt Power Supply - 5 YR warranty included The plug and play EC10 (Ethernet over Coax) unmanaged switch makes the modernization to IP devices (IoT) simple, secure and cost-effective. When paired with the EC Adapters, this powerful enterprise-grade switch delivers fast Ethernet and PoE+ over Coax cable with up to 3,000ft (915m) reach - that’s 10Xs the reach of standard Ethernet switches.

NVT NV-PS56-90W features 56 V DC power supply.

NVT NV-PS56-60W features 56 VDC power supply.

The 8-channel NV-8PS42-PVD is a key hybrid component that consolidates all CCTV system cabling using standard EIA/TIA 568B structured building wiring. Designed for installation in the IDF/Telecom Closet or MDF/Equipment Room, Power Supply StubEQ™ Active Receiver Hubs have individual floating 28 V AC outputs that support at-distance camera loads up to 1 Amp per channel for cable runs up to 460m (1,500ft). A built-in StubEQ™ video receiver hub ensures a zero loss video signal for connection into a DVR or IP encoder. Standard features include: per channel automatic-reset fault protection, transient protection, ground loop free individually floating outputs, and power and video diagnostics. All NVT products are UL and cUL listed, are compliant with CE, RoHS, WEEE, and come with NVT's lifetime warranty.

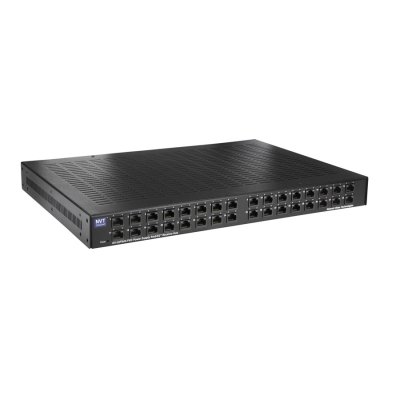

NV-8PS42-PVD - 8-Channel Power Supply Active Receiver HubNV-16PS42-PVD- 16-Channel Power Supply Active Receiver HubNV-32PS42-PVD -32-Channel Power Supply Active Receiver HubKey features:Provides Class 2 SELV 28 VAC with up to 1 Amp/ch while receiving video transmission and delivering P/T/Z telemetry, all over a single 4-pair Cat5 cable for each cameraBuilt-in distribution amp with 2 video outputs/channel (8 & 16-ch)Full motion CCTV video at distances up to 1,500ft when used with any passive NVT transceiver Adaptive StubEQ™ fully automatic 2-band equalization provides adjustment free equalization Automatic-reset fault protection; transient protectionIndividually floating power outputs and differential video inputs ensure ground-loop immunityDiagnostic LEDs show load/no load, miswires, overload conditions, and video statusLimited lifetime warrantyVisit the Network Video Technologies website for further information.

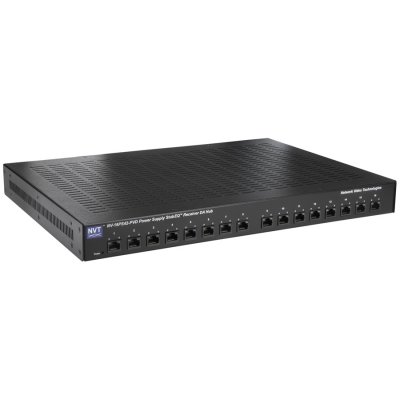

The 16-channel NV-16PS42-PVD is a key hybrid component that consolidates all CCTV system cabling using standard EIA/TIA 568B structured building wiring. Designed for installation in the IDF/Telecom Closet or MDF/Equipment Room, Power Supply StubEQ™ Active Receiver Hubs have individual floating 28 V AC outputs that support at-distance camera loads up to 1 Amp per channel for cable runs up to 460m (1,500ft). A built-in StubEQ™ video receiver hub ensures a zero loss video signal for connection into a DVR or IP encoder. Standard features include: per channel automatic-reset fault protection, transient protection, ground loop free individually floating outputs, and power and video diagnostics. All NVT products are UL and cUL listed, are compliant with CE, RoHS, WEEE, and come with NVT's lifetime warranty.

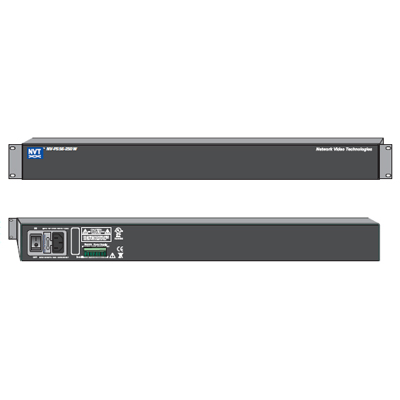

NVT NV-PS56-250W is a 1U high 19” rackmount single output auxiliary power supply intended to augment the internal power supply of the NV-ER1808i or NV-ER1816i Ethernet Receiver Hubs. It provides a contact alarm output under output failure conditions.

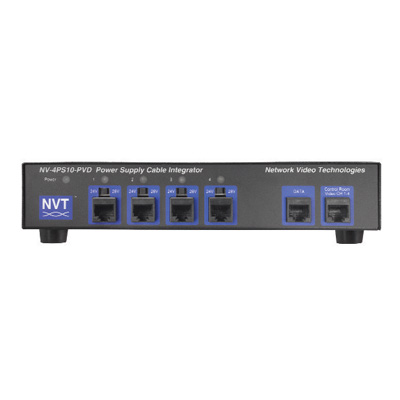

The NVT Model NV-4PS10-PVD combines a 1 Amp/channel power supply with pass through video and telemetry data, for up to 4 cameras, all over UTP wire. Designed for installation in the wiring/IDF telecom closet, or at the Control/MDF room, the NV-4PS10-PVD consolidates connectivity vial standard 4-pair RJ45 EIA/TIA 568B compliant premises wiring and pinouts. Built-in transient protection and diagnostics.

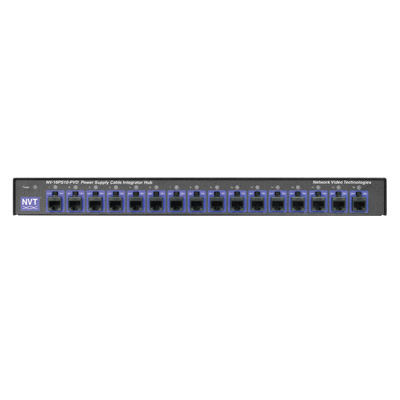

The NVT model NV-16PS10-PVD combines a 1 Amp/channel power supply with pass through video and telemetry data, for up to 16 cameras, all over UTP wire. Designed for installation in the wiring/IDF telecom closet, or at the Control/MDF room, the NV-16PS10-PVD consolidates connectivity via standard 4-pair RJ45 EIA/TIA 568B compliant premises wiring and pinouts. Built-in transient protection and diagnostics.

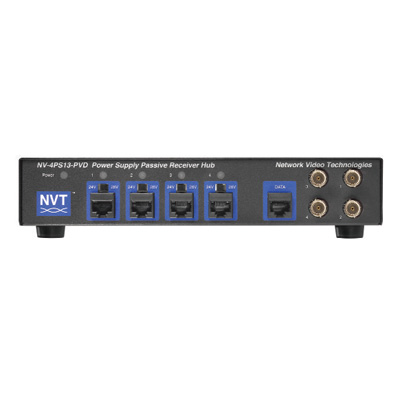

NV-4PS13-PVD is a key hybrid component that consolidates all CCTV system cabling using standard EIA/TIA 568B structured building wiring. Designed for installation in the IDF/Telecom Closet or MDF/Equipment Room, the Power Supply Passive Video Receiver Hub has independently selectable 24VAC-OFF-28VAC outputs that can support at-distance camera loads up to 1 Amp per channel. Use with NVT's PVDTM transceivers for cable runs under 750ft (225m). A built-in passive receiver hub allows connection to DVR or an encoder for IP transmission. Per-channel diagnostic LEDs display load /no-load, miswires, or fault conditions at a glance. Automatic-reset fault \ protection, transient protection, and ground loop free individually floating outputs.

Supplies camera power and video transmission at distance. Selectable 24 V  AC-OFF-28 V AC outputs, 1 amp out/ch. Built-in transient protection and diagnostics.

The NVT 16-channel NV-16PS13-PVD allows CCTV cabling using standard 568B structured wiring. This Power Supply Passive Video Receiver Hub typically resides near the DVR or encoders, and supports 24/28VAC power, video, and P/T/Z telemetry at extended distances. Per-channel diagnostic LEDs intuitively display load/no-load, miswires, or fault conditions. Load currents of up to 1 amp per channel are supported via individually floating auto-reset fault-protected outputs.

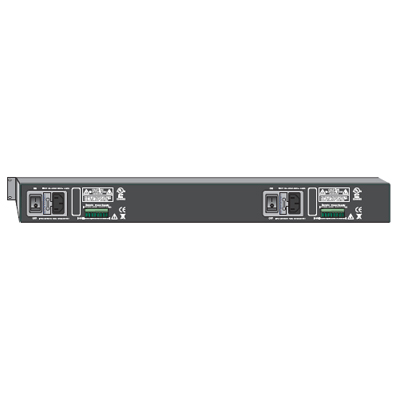

NVT NV-PS56-250W-2 is a 1U high 19” rackmount dual output auxiliary power supply intended to augment the internal power supply of the NV-ER1808i or NV-ER1816i Ethernet Receiver Hubs. It provides a contact alarm output under output failure conditions.

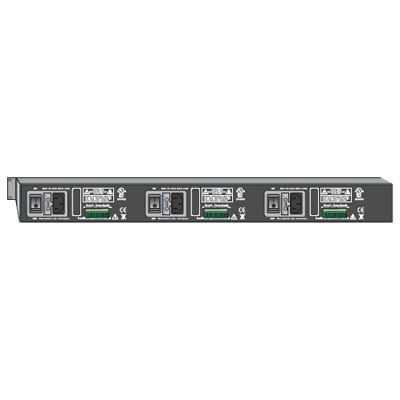

NVT NV-PS56-250W-3 is a 1U high 19” rackmount triple output auxiliary power supply intended to augment the internal power supply of the NV-ER1808i or NV-ER1816i Ethernet Receiver Hubs. It provides a contact alarm output under output failure conditions.

NV-DPSC4 takes a single C20 EIA (male) connector and splits into four C13 EIA (female) outlet plugs. NV-DPSC4 allows for multiple EoC transceivers to be connected to a single plug.

NVT  NV-EC-48-PWR is a power adapter for EC link and EC4 media converters.
