Dahua Technology Network cameras

12 MP 1/1.7" CMOS image sensor, low luminance, and high definition image.  Outputs max. 12M (4000 × 3000)@25 fps; supports 8M (3280 × 2480)@25/30 fps.  Built-in IR LED, and the max. illumination distance is 10 m.  Intelligent monitoring: Intrusion, tripwire, heat map, and people counting.  12 VDC/PoE power supply.  IP67 and IK10 protection.

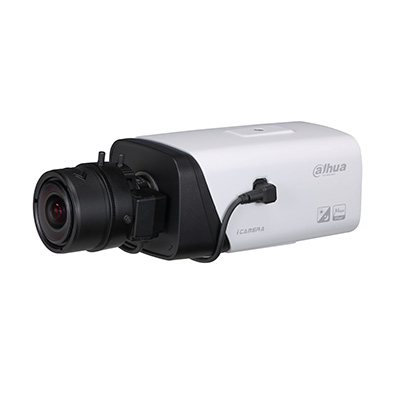

 IPC-HF81200E is a 12 megapixel ultra HD network camera featuring auto back focus and built-in mic.

Dahua introduced new Eco-Savvy 2Mp full-HD 12x network mini speed dome series (SD40/42/42C212S-HN), maintaining the Eco-Savvy three “low”s functionalities and also providing impressive surveillance effects. As is mentioned, this mini speed dome series enjoys the three “Low”s — low streaming, low consumption and ultra-low lux as it is based on Ambarella platform. From the test report, one can notice that the bit rate is less than 4Mb/s during encoding@1080p, and less than 2Mb/s@720p; meanwhile, its frame rate is up to 60fps@720p, making it easier to spot every move and detail of the object in high-speed motions. In addition, compared with the previous camera generations, each camera of the new platform can save over 50kW/h energy annually. The mini speed dome series employs in-house block camera, which is of all-in-one design, having video, audio, alarm, network and SD card interfaces embedded as a whole. In addition, this mini speed dome series is of stronger colour reproduction capability, which is even closer to the original; and as for the night vision effect, “revolutionary” should be the word as the image is quite clear and sharp with less noise, no matter in the color or the B/W mode. The mini speed dome series supports 12x optical zoom, its view angle ranges from 4.64 degrees to 51.3 degrees, managing to cover wider domains under surveillance. What worth a special mention is the “smart eye”, which realises instant focus with zero latency, enabling quick responding and better intelligent function. The dome series also support max 300 °/s pan speed and PoE+ (IEEE 802.3at). All Dahua network products conform to ONVIF protocol. Dahua SD40/42/42C212S-HN mini speed domes series is perfectly suitable for stations, airports, malls, hotels, boutiques and etc. The series provides various installations, such as wall, pendant, ceiling as well as in-ceiling-mounting depending on actual needs.

> 8/16-channel IP video access >Smart H.265+/Smart H.264+/H.265/H.264/MJPEG; H.265 auto switch >Max 320 Mbps incoming bandwidth · Up to 12MP resolution for live view and playback >1-channel fisheye dewarping (AI by NVR) >AI by Camera: Perimeter protection; face detection and recognition; SMD Plus; video metadata; ANPR; people counting; stereo analysis; crowd distribution; heat map >Support IPC UPnP, 8 PoE ports

Smart H.265+/H.265/Smart H.264+/H.264 Max 200Mbps Incoming Bandwidth Up to 8MP Resolution for Preview and Playback Up to 2ch@4K/8ch@1080P decoding HDMI/VGA simultaneous video output

Dahua Technology DH-IPC-HDB3300N is a 3MP day/night HD IP dome camera. The camera features H.264 & MJPEG dual-stream encoding, multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS.It also features DWDR, 2DNR, Auto iris, AWB, AGC, and BLC.

8MP, 1/2.8” CMOS image sensor, low illuminance, high image definition Outputs max. 8MP (3840 × 2160) @20 fps (AI function enabled by default) and supports 8MP (3840 × 2160) @25/30 fps (when AI function disabled) H.265 codec, high compression rate, low bit rate Built-in IR LED, max. IR distance: 30 m ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human) Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection Supports max. 256 G Micro SD card, built-in Mic

Smart H.265+/Smart H.264+/H.265/H.264/MJPEG; H.265 auto switch Max 320 Mbps incoming bandwidth · Up to 12MP resolution for live view and playback 1-channel fisheye dewarping (AI by NVR) AI by Camera: Perimeter protection; face detection and recognition; SMD Plus; video metadata; ANPR; people counting; stereo analysis; crowd distribution; heat map

Dahua Technology DH-SD52C120T-HN is a 1.3 megapixel PTZ dome camera that features: Support Triple-streams encoding DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS Max 500°/s pan speed, 360° endless pan rotation Up to 300 presets, 5 auto scan, 8 tour, 5 pattern Built-in 2/1 alarm in/out

2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition Outputs max. 2MP (1920 × 1080)@30 fps H.265 codec, high compression rate, low bit rate Built-in IR LED, max. IR distance: 50 m ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human) Abnormality detection: Motion detection, video tampering, scene changing, audio abnormality detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection Alarm: In, out; Audio: In, out; Supports max. 256 G Micro SD card, built-in Mic 12V DC/POE power supply IP67 protection SMD Plus

Ultra WDR up to 140dB Ultra 3D DNR Ultra Defog, ROI, EIS Smart detection Intelligent Function Auto back focus Bulit-in Mic

> New 4.0 user interface > Remote surveillance, live view and video play on mobile phone App > Max. decoding capability: 4×1080P@30fps. Supports adaptive decoding > Supports mainstream cameras of ONVIF and RTSP protocols > H.264/.H265/Smart H.264+/Smart H.265+/MJPEG, H.265 auto switch > 1 VGA/1 HDMI simultaneous video output by default, the maximum resolution of HDMI is 4K; and non-simultaneous video output is also supported, the maximum resolution is 1080P > 1-channel face detection and recognition (AI by NVR); or 2-channel perimeter detection (AI by NVR); or 4-channel SMD (AI by NVR); up to 10 face databases and 5,000 face images > Security baseline 2.1

Dahua Technology DH-IPC-KW10(W) is a 1MP HD cube network camera that features H.264 & MJPEG d ual - stream encoding and multiple network monitoring.

Dahua Technology DH-PTZ1182C-N is a 2MP full HD network high-speed positioning system. It features 1080P full and 720P HD excellent image quality and support intelligent 3D positioning.

DH-IPC-HF81200EP is an IP camera featuring 1/2.3" 12 Megapixel progressive scan CMOS, ultra display performance and decoding ability, as well as supporting smart triple streams.

Dahua Technology SD6981B-HN is a 1.3MP day/night HD IR PTZ IP dome camera. The camera features H.264 & MJPEG dual-stream encoding, multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS. It also supports  intelligent 3D positioning with DH-SD protocol.

System Overview With Android 8.0 embedded in its design, Dahua Smart Interactive Whiteboard has powerful processing capabilities with its 4-core CPU, 4-core GPU, and 4G 32G storage capacity. Equipped with a high-precision infrared frame with a 2 mm identification diameter and a 4K high-definition DLED module, this whiteboard will give you an extraordinary experience whether you are writing, controlling or displaying content. It features video conferencing, wireless screen sharing, file management, HD display, scan & go and more. Rely on this whiteboard to modernize your meeting room, and make your meetings more efficient. Functions 4K Camera with Ultra-wide FOV8-MP camera with a maximum resolution of 4K@30 fps. It supports live view, and has an ultra-wide field of view (diagonal 112.7°, horizontal 104°, and vertical 70.2°), capturing vivid details even in relatively large meeting rooms. Hidden Antenna DesignThe Wi-Fi and hotspot antenna has a front hidden design, which is not only beautiful and simple, but also ensures the stability of the signal strength when using a flush mount. Wireless Screen SharingIn addition to basic file share, wireless screensharing and reverse control, it also supports screen grouping (multiple transmission), real-time transmission of wireless camera picture and sound from the mobile phone, host mode (for overall authority control) and split-screen mode that displays up to 9 spilts on the same screen. Real Writing ExperienceThe smart interactive whiteboard supports tilt sensitivity writing. It comes equipped with specialized pressure-sensitive writing pens, designed to enhance the writing experience. With its soft, comfortable nib, writing on the whiteboard feels natural, similar to the real writing experience. Strong System SecuritySupports digital password, gesture password and fingerprint password for added protection. These unlock methods can all be applied to USB permissions, the lock screen, touch lock and factory restore settings. Up to 256 fingerprint passwords can be set, and the system supports fingerprint resolution 508 DPI. The false acceptance rate is less than 0.001%, and the false rejection rate is less than 0.1%. Easy to ShareEnhances the experience of sharing files by scanning a code. It automatically determines the device network to readily share the QR code across the extranet and the intranet. QR code encryption and extraction are also featured, providing privacy and data security through the required entry of a 6-digit random password for verification. SceneThe whiteboard is ideal for use in indoor sites such as in meeting rooms, command centers, hospitals and banks.

DH-SD60230T-HN is a 2 megapixel full HD network PTZ dome camera that supports intelligent 3D positioning with DH-SD protocol.

Smart H.265+/Smart H.264+/H.265/H.264/MJPEG; H.265 auto switch Max 320 Mbps incoming bandwidth Up to 12MP resolution for live view and playback 1-channel fisheye dewarping (AI by NVR) AI by Camera: Perimeter protection; face detection and recognition; SMD Plus; video metadata; ANPR; people counting; stereo analysis; crowd distribution; heat map Support IPC UPnP, 16 PoE ports

1/2.8” 2Megapixel progressive scan STARVIS™ CMOS   ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments   25/30 fps@1080P (1920 × 1080)   WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC · Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS   7 mm–35 mm motorized lens   1/1 Alarm in/out, 1/1 audio in/out   Max. IR LEDs Length 80 m   Micro SD memory, IP67, IK10

> H.265/H.264 codec decoding Max 80Mbps incoming bandwidth Up to 8Mp resolution preview&playback Up to 1ch@8MP/4ch@1080P decoding HDMI/VGA simultaneous video output Support IPC UPnP, 4PoE ports

> Smart H.265+/Smart H.264+/H.265/H.264 > Max 80Mbps incoming bandwidth > Up to 8Mp resolution preview&playback > Up to 1ch@8MP/4ch@1080P decoding > HDMI/VGA simultaneous video output

16/32-channel IP video access > Smart H.265+/Smart H.264+/H.265/H.264; H.265 auto switch > Max 200 Mbps incoming bandwidth > Up to 8MP resolution for preview and playback > 8-channel decoding@1080p (30 fps) > AI by Camera: Perimeter protection; SMD Plus; people counting; heat map > Support IPC UPnP, 16 PoE ports

New 4.0 user interface 16-channel decoding@1080p (30 fps); self-adaptive decoding capabil ity Access, storage or forwarding at 384 Mbps Simultaneous video output for VGA and HDMI1; 4K heterogeneous output for the 2 HDMI ports Multiple data mode such as Raid0, Raid1, Raid5, Raid6, and Raid10 Remote configuration and management of IPCs, such as setting pa rameters, acquiring information and upgrading IPCs of the same model in batches AI-by-camera functions such as perimeter protection, face detection and recognition, SMD Plus, video metadata, ANPR and 3D behavior analysis N+M cluster. When the host fails, the standbydevice will continue to record; once the host recovers,video recorded on the standby device will be transmitted back

5x optical zoom. Max. 25/30fps@4M. IR distance up to 50 m. Warm light illumination distance up to 30 m. SMD 3.0. Perimeter protection. Face detection. Alarm: 1 in, 1 out; audio: 1 in, 1 out. Built-in Mic and Speaker for Two-way Talk. 12 VDC/PoE power supply. IP66. Sound and light alarm (red and blue lights).

2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition Outputs max. 2MP (1920 × 1080) @30 fps H.265 codec, high compression rate, low bit rate Built-in warm illuminator, and the max. illumination distance: 40 m ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human) Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection. Supports sound and light alarm linkage. When an alarm is triggered, the camera links sound alarm and light flashing. Supports one-tap disarming. You can disarm the events of alarm output, sending email, audio, and light in the configured period. Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker SMD Plus Red and blue flashlight alarm
