Dahua Technology HD CCTV

System Overview Experience 1080P full HD colour video and the simplicity of reusing existing coaxial infrastructure with HDCVI. The full-colour starlight HDCVI camera presents a high quality colour image with rich details even in total darkness conditions. It offers various fixed lens models with a multi-language OSD and HD/SD switchable output. It adopts two powerful warm white LED illuminators, covering an effective range up to 40m(131ft). The LEDs switch on automatically in darkness to capture detail-packed full-colour images 24/7, ensuring anthentic identificaiton of objects. It is an ideal choice for applications such as schools, retail centers and parking lots.   Functions Full-colour Starlight The camera adopts F1.0 large aperture lens and 1/2.8" high performance sensor. With higher amount of absorbed light and advanced image processing algorithm, the camera presents an impressive lowlight performance with an exceptional balance between noise reduction and the blur of moving object.   Warm Supplemental lights With two warm supplemental LED lights, the camera is able to provide a colourful and vivid image even in total darkness. By default, the camera is set to smart light mode, in which the camera can automatically adjust the exposure time and light sensitivity simultaneously to avoid overexposureing of the objects in the image center. Also, the sensitivity and intensity of the LED lights can be remotely controlled by OSD menu.   Broadcast-quality Audio Audio information is used as supplementary evidence in video surveillance applications. The HDCVI camera supports audio signal transmission over coaxial cable. In addition, it adopts unique audio processing and transmission technology that best restores source audio and eliminates noise, guaran-teeing the quality and effectiveness of collected audio information.   4 Signals over 1 Coaxial Cable HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility. * Audio input is available for some models of HDCVI came   Long Distance Transmission HDCVI technology guarantees long-distance and real-time transmission without any loss. It supports up to 800m for 1080P Full HD video via coaxial cable, and up to 300m via UTP cable.* *Actual results verified by real-scene testing in Dahua's test laboratory.   Simplicity HDCVI technology inherits the born feature of simplicity from traditional analogue surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analogue system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network.   Multiple-formats The camera supports multiple video formats including HDCVI, CVBS, and other two common HD analogue formats in the market. A DIP switch located on the cable allows you to quickly toggle formats, further simplifying installation and debugging. This feature makes the camera compatible with not only XVRs, but also most existing HD/SD DVRs.   Wide Dynamic Range Embedded with industry leading wide dynamic range (WDR) technology, vivid pictures are achieved even in the most intense contrast lighting conditions. True WDR (120dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.   Advanced 3DNR 3DNR is noise reduction technology that detects and eliminates random noises by comparing two sequential frames. Dahua’s advanced 3DNR technology allows remarkable noise reduction with little impact to sharpness, especially under limited lighting condition. Besides, the advanced 3DNR effectively decreases the band width and saves the storage space.   Protection The camera's outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust with IP67 ranking, making it suitable for indoor or outdoor environments. Supporting ±30% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.

Dahua Technology, a manufacturer and supplier of video surveillance products headquartered in Hangzhou, China, now offers the ITC235-TF1A Traffic Flow Analysis camera, capable of traffic flow applications including data collection and analysis, and vehicle type classification. High image quality 1/1.9inch Starlight CMOS image sensor, high colour reducibility, high sensitivity, super Low-Light effect H.264 standard HD video format and 25fps HD video frame rate Applications and accuracy Embedded integration component design, with a variety of algorithms, such as traffic data collection and analysis and vehicle type classification Up to 80m of traffic data counting range The accuracy of detection is over 99%, when the speed is below 80km/h A variety of signals, data and communication interfaces

Dahua Technology DH-IPC-HFW4421D(-AS) is a 1/3-inch day/night HD network LXIR bullet camera with 4 megapixel progressive scan CMOS, smart detection, 120dB wide dynamic range, max. IR LEDs length 80m, multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS etc.

Dahua DH-SD6AE230F-HNI is a 2MP full HD IR PTZ IP dome camera. It features H.264 & MJPEG three-stream encoding, auto-tracking and IVS as well as multiple network monitoring. The camera also supports intelligent 3D positioning with DH-SD protocol.

Dahua Technology DH-IPC-KW100 is a colour/monochrome 1.3MP HD cube network camera. It features H.264 & MJPEG dual-stream encoding and multiple network monitoring: web viewer, CMS(DSS/PSS) & DMS.

IPC-HDBW3202P has the following features: Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS; 3.3 ~ 12mm varifocal lens; 3 ~ 9mm varifocal motorized lens; Max. IR LEDs length 20m; H.264 & MJPEG dual-stream encoding.

H.264 & MJPEG dual-stream encoding Wi-Fi support Built-in Mic Max. IR LEDs length 15m Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS

Dahua Technology DH-SD22204T-GN is a 2 megapixel mini PTZ dome camera that features: H.264 & MJPEG Triple-streams encoding Max. 25/30fps@1080P(1920x1080) & 50/60fps@720P resolution WDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS Max 100°/s pan speed

Dahua Technology IPC-HDBW4200E-(A)(S) is a 2MP full HD IR mini IP dome camera with DWDR, 3D-DNR as well as H.264 & MJPEG dual-stream encoding. It also features 3.6mm fixed lens.

Dahua Technology IPC-HF5100P  is a 1.3MP HD network camera. It features multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS and high-quality video with low bitrate.

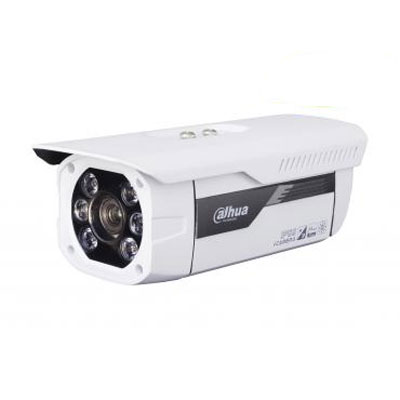

Dahua Technology DH-IPC-HFW5200P-IRA is a 2MP Full HD network water-proof IR-bullet camera. It features H.264 ,H.264H &MJPEG dual-stream encoding and supports multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS.

Starlight IP Starlight series camera not only offers smart decoctions but also provides a number of capabilities that ensure clear video even in difficult lighting conditions. Eco-savvy 2.0 New series cameras are capable of providing higher performance with enhanced Ambarella S2LM chip which offers more benefits by adding new functions, including 4MP resolution, WDR and IVS.  HDCVI Solution Dahua HDCVI is a solution for megapixel high definition applications, featuring non-latent long-distance transmission at a lower cost. 4K Dahua 4K camera leverage a 12.0-Megapixel sensor which incorporated with high-performance DSP, provides extraordinary image quality. The camera offers 12MP(400 x 3000) at 15 fps and 4K at 30 fps preview with a suggested bandwidth of 8Mbps, ensuring a smooth live view without wasting network resources. H.265 Dahua has adopted H.265 in its latest product portfolio that includes IP camera, NVRs, transmission devices, control platform M70 as well as video-wall systems.

DH-SD6C230I-HC is a 2 megapixel full HD HDCVI IR PTZ dome camera featuring control over coaxial cable, and long distance real-time transmission.

Dahua Technology DH-SD29204S-GN is a 2 megapixel mini IR PTZ dome camera that features: H.264 & MJPEG dual-streams encoding Max. 25/30fps@1080P(1920x1080) & 50/60fps@720P resolution DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS Max 100°/s pan speed

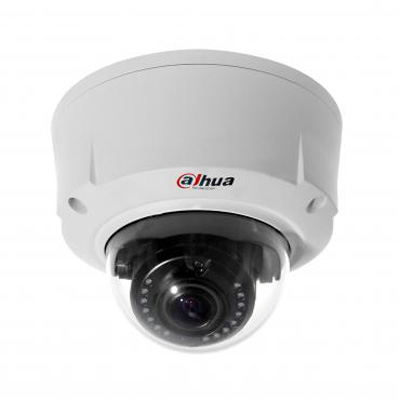

IPC-HDBW3202N has the following features: Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS; 3.3 ~ 12mm varifocal lens; 3 ~ 9mm varifocal motorized lens; Max. IR LEDs length 20m; H.264 & MJPEG dual-stream encoding.

Dahua Technology DH-IPC-HFW1120RM is a 1.3 megapixel HD network mini IR bullet camera that features multiple network monitoring:  web viewer, CMS (DSS/PSS) & DMSS.

3 megapixel progressive scan Aptina CMOS Smart triple streams supported Ultra wide dynamic range up to 120dB Smart IR technology Max. IR LEDs length 20m Micro SD memory

4 megapixel progressive scan CMOS Smart detection supported Multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS Max. IR LEDs length 50m Micro SD memory

Dahua Technology DH-IPC-HFW2201R-ZS is a 1/3-inch day/night 2 MP full HD network IR bullet camera with multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS.

Dahua DH-SD6AL230F-HNI is a 2MP full HD PTZ IR IP dome camera. It features H.264 & MJPEG three-stream encoding, auto-tracking and IVS as well as multiple network monitoring. The camera also supports intelligent 3D positioning with DH-SD protocol.

Dahua Technology DH-IPC-HFW1100S is a 1MP HD network small IR-bullet camera. It features 3.6mm fixed lens and multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS.

System OverviewThe IR Megapixel Fixed camera delivers 4MP resolution with a 2.8mm/ 3.6mm fixed lens. The camera's elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small to mid-size applications at an affordable price. Functions Smart Codec (H.265+ & H.264+)Smart Codec is the optimised implementation of standard video compression (H.265 & H.264) that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart Codec technology reduces bit rate and storage requirements by up to 70% when compared to the standard video compression. Intelligent Video Analysis (IVS)Dahua camera is equipped with a built-in intelligent analytic algorithm based on video, which can realise intelligent functions like Tripwire and Intrusion, to quickly and accurately respond to monitoring events in specific area, It can enhance monitoring efficiency. In addition, the camera supports intelligent tamper detection, which is to generate warning message via detecting dramatic scene change and to guarantee effective video surveillance. Wide Dynamic Range (WDR)The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, true WDR (120 dB) optimises both the bright and dark areas of a scene at the same time to provide usable video. Smart IR technologyWith IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts the intensity of camera's infrared LEDs to compensate the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments up to 30m (98ft). Protection (IP67, IK10, wide voltage)The camera allows for ±25% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 2KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) and impact tests (IK10), The camera complies with an IK10 impact rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.). EnvironmentalDahua cameras operate in extreme temperature environments, rated for use in temperatures from -30° C to +60° C (-22° F to +140° F) with 95% humidity. Image flipCapturing unnecessary data such as surrounding hallway walls can increase storage requirements without any added value. The image flip feature allows the camera's image to be rotated in 90° increments for better video optimisation. InteroperabilityThe camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.

Dahua Technology IPC-HF5200P is a 2MP full HD network camera. It features H.264 & MJPEG dual-stream encoding andmultiple network monitoring: web viewer, CMS(DSS/PSS) & DMS.
