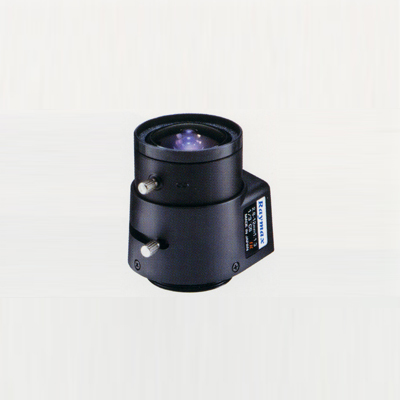

Raymax LTV4Z2813GCS-IR 1/3 inch CS-mount vari-focal lens
Technical Specification
| Make | Raymax |
|---|---|
| Manufacturer | Raymax Co Ltd |
| Category | CCTV>CCTV camera lenses |
| Model code | LTV4Z2813GCS-IR |
| Lens Type | Varifocal |
| Zoom type | Manual |
| Lens Format inches | 1/3 inch |
| Focal Length mm | 2.8 ~ 12 mm focal length |
| Iris Type | Auto Iris |
| Lens Mount | CS mount |
| F-Stop | F1.3 ~ 360 F-stop |
| Minimum Object Distance m | 0.3 |
| Physical Specifications |
Dimensions mm: 36 x 41 x 42 Weight g: 40 |
| Environmental Specifications | Operating Temperature oC: -10 ~ +50 C (14 ~ 122 F) |
| Varifocal | Yes |
| Additional info | Raymax LTV4Z2813GCS-IR is a 1/3 inch CS-mount vari-focal lens with 2.8 - 12mm focal length. |
