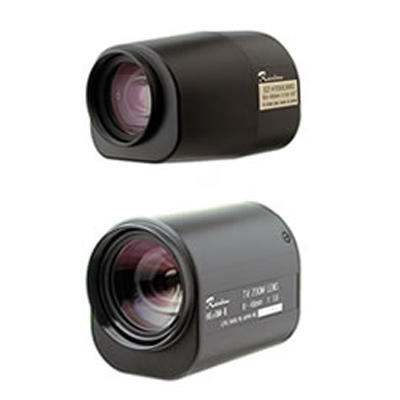

Rainbow H6X8M-II-1/2 CCTV camera lens
Technical Specification
| Make | Rainbow |
|---|---|
| Manufacturer | Rainbow CCTV |
| Category | CCTV>CCTV camera lenses |
| Model code | H6X8M-II-1/2 |
| Zoom type | Motorised |
| Lens Format inches | 1/2 inch |
| Focal Length mm | 8 ~ 48 mm focal length |
| Iris Type | Auto Iris |
| Lens Mount | C mount |
| F-Stop | 1.0 F-stop |
| Zoom Ratio | 6X zoom |
| Direct Drive | Yes |
| Angle (Field) of View o | 43.6 x 33.4 |
| Filter Size mm | 52 |
| Minimum Object Distance m | 1.0 |
| Physical Specifications |
Dimensions mm: 60 x 70 x 97.1 Weight g: 560 |
| Environmental Specifications | Operating Humidity %: -10 ~ 50 |
| Additional info | Max relative Aperture: 1:1.4. Compatible with 1/2" and 1/3" Cameras. |
| Download PDF version Download PDF version | |
