Technical Specification

Features:

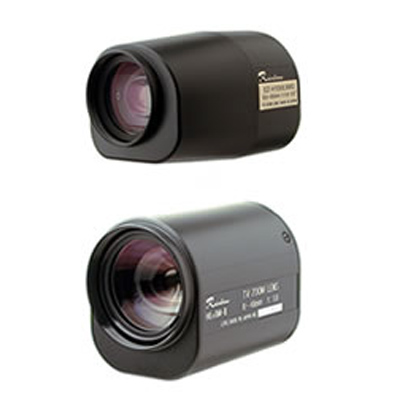

  • Make: Rainbow
  • Model code: G10X16M-1
  • Zoom type: Motorised
  • Lens Format inches: 1
  • Focal Length mm: 116 ~ 160
Read more
Additional info:

Max relative Aperture: 1:2.2  Angular Field of View (deg): 43.6 x 33.4 at 16mm and 4.6 x 3.4 at 160mm.

Read more
Make Rainbow
Manufacturer Rainbow CCTV
Model code G10X16M-1
Zoom type Motorised
Lens Format inches 1
Focal Length mm 116 ~ 160
Iris Type Auto Iris
Lens Mount C
F-Stop 2.2
Zoom Ratio 10X
Direct Drive Yes
Filter Size mm 77
Physical Specifications Dimensions mm: 100 x 117 x 176
Weight g: 1400
Environmental Specifications Operating Temperature oC: -10 ~ 50
Additional info Max relative Aperture: 1:2.2  Angular Field of View (deg): 43.6 x 33.4 at 16mm and 4.6 x 3.4 at 160mm.
