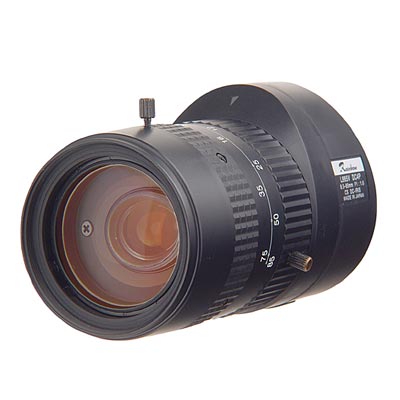

Rainbow L885VDC4P-1/2 CCTV camera lens

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Features:

Make: Rainbow
Model code: L885VDC4P-1/2
Zoom type: Manual
Lens Format inches: 1/2 inch
Focal Length mm: 8.5 ~ 85 mm focal length

Additional info:

Max relative Aperture: 1:1.6. Operation temperature: -10 ~ +50 degrees centigrade. Angular Field of View (deg): 41.3 X 31.5 at 8.5mm and 4.3 x 3.2 at 85mm.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Rainbow
Manufacturer	Rainbow CCTV
Category	CCTV>CCTV camera lenses
Model code	L885VDC4P-1/2
Zoom type	Manual
Lens Format inches	1/2 inch
Focal Length mm	8.5 ~ 85 mm focal length
Iris Type	Auto Iris
Lens Mount	CS mount
F-Stop	1.6 F-stop
Zoom Ratio	x10 zoom
Direct Drive	Yes
Filter Size mm	46 x P0.75
Physical Specifications	Dimensions mm: 53.5 x 61.3 x 107.5 Weight g: 216
Varifocal	Yes
Additional info	Max relative Aperture: 1:1.6. Operation temperature: -10 ~ +50 degrees centigrade. Angular Field of View (deg): 41.3 X 31.5 at 8.5mm and 4.3 x 3.2 at 85mm.
