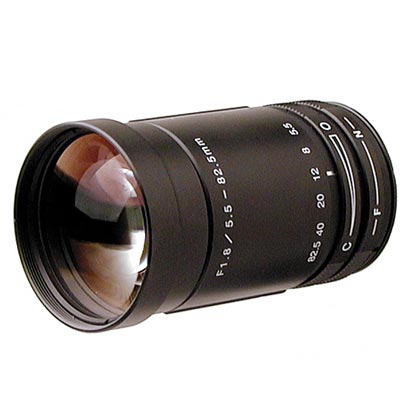

Rainbow L582VCS-1/3 CCTV camera lens

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Features:

Make: Rainbow
Model code: L582VCS-1/3
Zoom type: Manual
Lens Format inches: 1/3 inch
Focal Length mm: 5.5 ~ 82.5 mm focal length

Additional info:

Max relative Aperture: 1:1.8 Operation temperature: -10 ~ +50 degrees centigrade. Angular Field of View (deg): 47.1 x 36.2 at 5.5mm and 3.3 x 2.5 at 82.5mm.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Rainbow
Manufacturer	Rainbow CCTV
Category	CCTV>CCTV camera lenses
Model code	L582VCS-1/3
Zoom type	Manual
Lens Format inches	1/3 inch
Focal Length mm	5.5 ~ 82.5 mm focal length
Iris Type	Manual Iris
Lens Mount	CS mount
F-Stop	1.8 F-stop
Zoom Ratio	x 15 zoom
Physical Specifications	Dimensions mm: 48 x 82.5 Weight g: 210
Varifocal	Yes
Additional info	Max relative Aperture: 1:1.8 Operation temperature: -10 ~ +50 degrees centigrade. Angular Field of View (deg): 47.1 x 36.2 at 5.5mm and 3.3 x 2.5 at 82.5mm.
