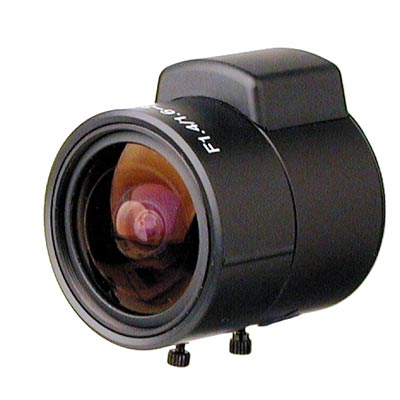

Rainbow L163VDC4P-1/3 CCTV camera lens

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Features:

Make: Rainbow
Model code: L163VDC4P-1/3
Lens Format inches: 1/3 inch
Focal Length mm: 1.6 ~ 3.4 mm focal length
Iris Type: Auto Iris

Additional info:

Max relative Aperture: 1:1.4 Operation temperature: -10 ~ +50 degrees centigrade. Angular Field of View (deg): 180.0 x 114.1 at 1.6mm and 84.3 x 55.8 at 3.4mm.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Rainbow
Manufacturer	Rainbow CCTV
Category	CCTV>CCTV camera lenses
Model code	L163VDC4P-1/3
Lens Format inches	1/3 inch
Focal Length mm	1.6 ~ 3.4 mm focal length
Iris Type	Auto Iris
Lens Mount	CS mount
F-Stop	1.4 F-stop
Direct Drive	Yes
Physical Specifications	Dimensions mm: 39.5 x 45.5 x 52.1 Weight g: 105
Varifocal	Yes
Additional info	Max relative Aperture: 1:1.4 Operation temperature: -10 ~ +50 degrees centigrade. Angular Field of View (deg): 180.0 x 114.1 at 1.6mm and 84.3 x 55.8 at 3.4mm.
Download PDF version Download PDF version
