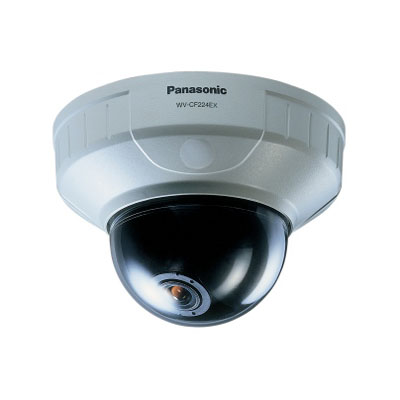

Technical Specification

Features:
  • Make: Panasonic
  • Model code: WVCF224EX
  • Chip Inch Size: 1/4
  • Colour Type: Colour
  • Resolution TVL: 480
Read more
Make Panasonic
Manufacturer Panasonic System Communications Company Europe
Model code WVCF224EX
Chip Inch Size 1/4
Colour Type Colour
Resolution TVL 480
Dome Type Variable Focus
Sensitivity lux 1.6
Electrical Specifications Voltage: 24 V AC
Power Consumption: 2.8 W
Focal length 2.8 ~ 6.0
Rotation Angleso 200 pan, 150 tilt
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
S/ N (Signal/ Noise) Ratio dB 50
Synchronisation Internal, Line-lock
Video Output 1.0 Vp-p, 75 Ohms
Physical Specifications Dimensions mm: 135 (Dia) x 90
Weight g: 460
Environmental Specifications Operating Temp oC: -10 ~ +50
Operating Humidity %: 0 ~ 90
