Technical Specification

Features:

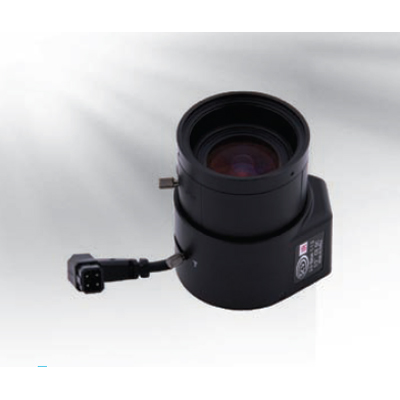

  • Make: Kodicom
  • Model code: KL-2812AS IR
  • Zoom type: Manual
  • Lens Format inches: 1/3
  • Focal Length mm: 5 ~ 50
Read more
Make Kodicom
Manufacturer Kodicom
Model code KL-2812AS IR
Zoom type Manual
Lens Format inches 1/3
Focal Length mm 5 ~ 50
Iris Type Auto Iris
Lens Mount CS
F-Stop 1.4 ~ 360
Direct Drive Yes
Angle (Field) of View o 121.7 x 30.0
Physical Specifications Dimensions mm: 53.9 × 45.0 × 49.4
Weight g: 113.5
Environmental Specifications Operating Temperature oC: -10 ~ +50
Varifocal Yes
