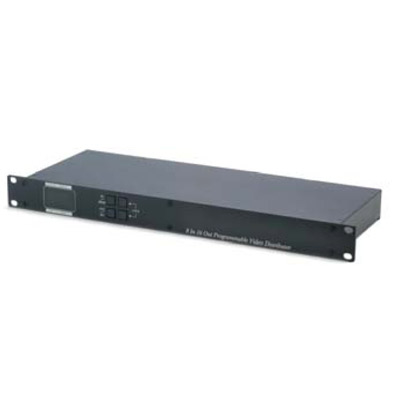

Technical Specification

Features:
  • Make: Everfocus
  • Model code: EP TD 816 PRO
  • Series: WISENET X SERIES
  • Video Distribution Amplifier: Yes
  • No of Video Inputs: 8
Read more
Additional info:

Programmable video signal distributor.  2 x 7 segment LED displays.  4 front keys with lock function.

Read more
Make Everfocus
Manufacturer EverFocus Electronics AG
Model code EP TD 816 PRO
Series WISENET X SERIES
Video Distribution Amplifier Yes
No of Video Inputs 8
No of Video Outputs 16
Bandwidth MHz 10 Hz ~ 10 MHz
Video Input Properties 0.8 ~ 1.2 Vp-p Composite, BNC
Video Output Properties 1 Vp-p Composite to 75 Ohms, BNC
Physical Specifications Dimensions mm: 482 x 44 x 170
Weight g: 2600
Environmental Specifications Operating Temperature oC: 0 ~ 50
Electrical Specifications Voltage: 12 V DC
Power Consumption: 500 mA
Additional info

Programmable video signal distributor.  2 x 7 segment LED displays.  4 front keys with lock function.
