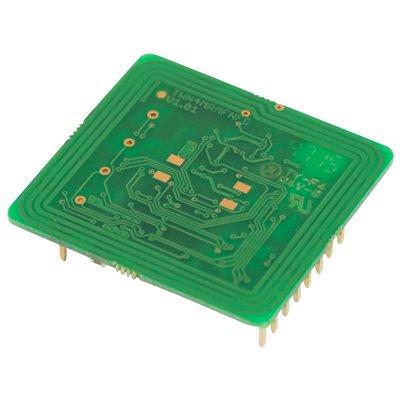

ELATEC T4MR-F TWN4 MultiTech HF/NFC Mini OEM RFID Card/Smartphone Reader Module

Technical Specification

Features:

Make: ELATEC
Model code: T4MR-F
Reader Type: Proximity
Standalone/ Networkable: Networkable
Read Range mm: Up to 70 mm mm

Additional info:

The TWN4 MultiTech HF Mini is built for small size, low power consumption, price and flexibility. Thanks to its compact dimensions, it can be integrated directly into the main circuit board. ELATEC’s multi-technology mini readers support high-frequency RFID and optionally NFC. They are designed for integration into machines, handheld computers or any other devices. Outstanding features are the 4 user-configurable ports (to be configured as input or output), beeper support and an integrated high-performance antenna. The simple ASCII or binary protocol enables quick software development cycles. All host communication takes place via SPI or asynchronous serial TTL interface. The module offers positions for placement for two LEDs that can be software controlled. For applications requiring additional security, there is an external Secure Access Module (SAM). This enables the application to perform secure transactions, e.g., payment terminals, etc.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	ELATEC
Manufacturer	ELATEC GmbH
Category	Access Control>Access control readers
Model code	T4MR-F
Reader Type	Proximity
Standalone/ Networkable	Networkable
Read Range mm	Up to 70 mm mm
Wiegand Interface	Yes
Clock-and-Data Interface	Yes
Electrical Specifications	Voltage: 3.15 V ~ 5.5 V DC Power Consumption: RF field on: 110 mA typically
Physical Specifications	Dimensions mm: 32.6 x 30.1 x 11.2 Weight g: 4
Environmental Specifications	Operating Temp ^oC: -25 ~ +80 C (-13 ~ +176 F) Operating Humidity %: 5 ~ 95
Additional info	The TWN4 MultiTech HF Mini is built for small size, low power consumption, price and flexibility. Thanks to its compact dimensions, it can be integrated directly into the main circuit board. ELATEC’s multi-technology mini readers support high-frequency RFID and optionally NFC. They are designed for integration into machines, handheld computers or any other devices. Outstanding features are the 4 user-configurable ports (to be configured as input or output), beeper support and an integrated high-performance antenna. The simple ASCII or binary protocol enables quick software development cycles. All host communication takes place via SPI or asynchronous serial TTL interface. The module offers positions for placement for two LEDs that can be software controlled. For applications requiring additional security, there is an external Secure Access Module (SAM). This enables the application to perform secure transactions, e.g., payment terminals, etc.
