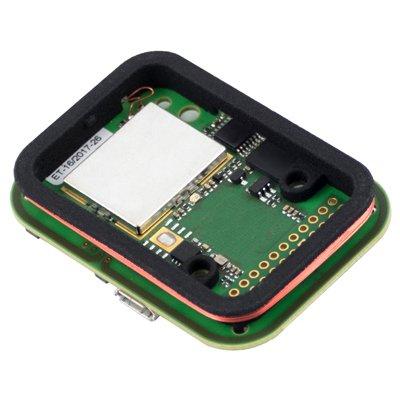

ELATEC T43O-F7C0 TWN4 MultiTech 3 M BLE reader

Technical Specification

Features:

Make: ELATEC
Model code: T43O-F7C0
Reader Type: Proximity
Standalone/ Networkable: Networkable
Read Range mm: Up to 100 mm

Additional info:

TWN4 MultiTech 3 M BLE integrates RFID (125 kHz and 13.56 MHz), NFC and Bluetooth Low Energy capabilities into a compact but powerful reader. Its reduced size combined with optimized read/write performance makes it the perfect reader for all applications where small size and full performance matters, e.g. print solutions, driver identification, POS integration and many more. Furthermore, TWN4 MultiTech 3 M BLE provides access to most common host interfaces such as USB, serial (TTL) or I²C which are readily accessible through an on-board connector. TWN4 MultiTech 3 M BLE allows users to read and write almost all common worldwide 125 kHz and 13.56 MHz tags and/or labels. It supports all major transponders from various suppliers like ATMEL, EM, ST, NXP, TI, HID etc. and ISO standards like ISO 14443A/B (T=CL), ISO 15693, ISO 18092 / ECMA-340 (NFC).

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	ELATEC
Manufacturer	ELATEC GmbH
Category	Access Control>Access control readers
Model code	T43O-F7C0
Reader Type	Proximity
Standalone/ Networkable	Networkable
Read Range mm	Up to 100 mm
Wiegand Interface	Yes
Clock-and-Data Interface	Yes
Electrical Specifications	Voltage: 4.3 V - 5.5 V via USB; via generic interface (X2) 3.3 V ± 5% Power Consumption: RF field on: 120 mA typically + 16 mA (BT) / Sleep: 500 μA typ. / Cyclic Operation: TBD
Physical Specifications	Dimensions mm: 50 x 35 x 7 Weight g: 9
Environmental Specifications	Operating Temp ^oC: -25 ~ +80 C (-13 ~ +176 F) Operating Humidity %: 5 ~ 95
Additional info	TWN4 MultiTech 3 M BLE integrates RFID (125 kHz and 13.56 MHz), NFC and Bluetooth Low Energy capabilities into a compact but powerful reader. Its reduced size combined with optimized read/write performance makes it the perfect reader for all applications where small size and full performance matters, e.g. print solutions, driver identification, POS integration and many more. Furthermore, TWN4 MultiTech 3 M BLE provides access to most common host interfaces such as USB, serial (TTL) or I²C which are readily accessible through an on-board connector. TWN4 MultiTech 3 M BLE allows users to read and write almost all common worldwide 125 kHz and 13.56 MHz tags and/or labels. It supports all major transponders from various suppliers like ATMEL, EM, ST, NXP, TI, HID etc. and ISO standards like ISO 14443A/B (T=CL), ISO 15693, ISO 18092 / ECMA-340 (NFC).
