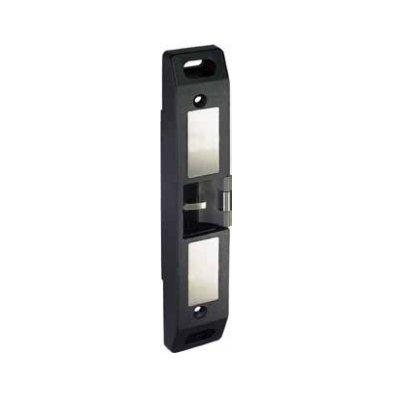

CDVI 2460 Rim Mounted Strike
Technical Specification
- Make: CDVI
- Model code: 2460
- Fail-Safe Operation: Yes
- Material: Zinc alloy in black finish
- Handing: Non-handed fully reversible
The 2460 rim mount strike is a partial surface mount electric strike designed for doors with rim exit devices. Latch and lock status monitoring is standard for 2460, and the strike operates at 12~28 VDC/VAC. The strike can easily be reversed between fail-safe and fail-secure.
Read more| Make | CDVI |
|---|---|
| Manufacturer | CDVI |
| Category | Access Control>Access control system accessories |
| Model code | 2460 |
| Fail-Safe Operation | Yes |
| Material | Zinc alloy in black finish |
| Handing | Non-handed fully reversible |
| Electrical Specifications | Voltage: 12 ~ 28 V DC / V AC |
Product description
The CDVI Model 2460 Rim Mounted Strike is designed for enhanced security on doors equipped with crash bars. Engineered for both durability and versatility, this electric strike offers a range of features to meet the demands of modern buildings. It proficiently handles latchbolt sizes up to 11/16’’ (17 mm) and supports a reversible configuration, ensuring compatibility with various door setups.
This robust device features both fail-safe and fail-secure modes, providing flexibility in safety measures. Users benefit from standard latch and lock status monitoring, providing peace of mind through enhanced security protocols. The strike's anti-friction roller keeper and partial surface mount installation make it a reliable choice for high-traffic environments, having been endurance tested up to 1,000,000 cycles.
Key Features
- Non-handed, fully reversible design
- Voltage flexibility: Compatible with 12῀28 VDC/VAC
- Composed of durable zinc alloy with a sleek black finish
- Static strength capacity of 1500 lbs (680 kg)
- Operational temperature range: -10°C to 45°C (14°F to 113°F)
Ideal Use Cases
Perfect for high-traffic areas, the CDVI 2460 Rim Mounted Strike is ideal for commercial buildings, institutions, and facilities requiring reliable access control solutions. Its adaptability to both fail-safe and fail-secure settings makes it a versatile choice for a variety of security applications.
