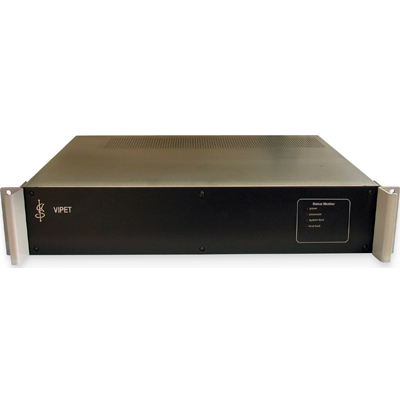

ASL Safety and Security VIPET IP audio controller
Technical Specification
- Make: ASL Safety and Security
- Model code: VIPET
- Dimensions mm: 88 x 437 x 325
- Weight g: 6,800
- Operating Temperature oC: -5 ~ +50
The VIPET IP audio controller is a hardware platform developed in conjunction with ASL's VIPA software suite that provides a compact voice over IP and digital voice announcement solution. The standard VIPET platform includes a dedicated watchdog and provides 2 Ethernet ports and three serial ports. There are options for: 4, 8, or 12 audio channels; 8 extra serial channels; digital I/O ports; analogue input ports; DC or AC power supplies; and flash and/or hard disks.
Read more| Make | ASL Safety and Security |
|---|---|
| Manufacturer | ASL Safety and Security Ltd |
| Category | CCTV>Video signal devices & accessories |
| Model code | VIPET |
| Physical Specifications |
Dimensions mm: 88 x 437 x 325 Weight g: 6,800 |
| Environmental Specifications |
Operating Temperature oC: -5 ~ +50 Operating Humidity %: 0 ~ 93 |
| Electrical Specifications |
Voltage: 24 VDC, 230 VAC Power Consumption: 200 mA |
| Additional info |
The VIPET IP audio controller is a hardware platform developed in conjunction with ASL's VIPA software suite that provides a compact voice over IP and digital voice announcement solution. The standard VIPET platform includes a dedicated watchdog and provides 2 Ethernet ports and three serial ports. There are options for: 4, 8, or 12 audio channels; 8 extra serial channels; digital I/O ports; analogue input ports; DC or AC power supplies; and flash and/or hard disks. |
