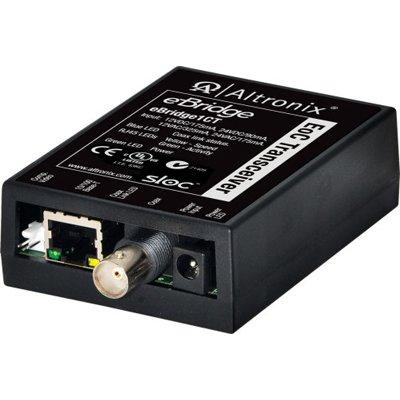

Altronix eBridge1CT EoC Single Port Transceiver

Technical Specification

Features:

Make: Altronix
Model code: eBridge1CT
Data Transceiver: Yes
No of Video Inputs: 1 channels
Dimensions mm: 64 x 25 x 97

Additional info:

The eBridge1CT - IP over Coax transceiver is designed for use with eBridge1CR, eBridge4CR, and eBridge16CR receivers to enable fast 10/100Base-T Ethernet digital communication over coax cable. This plug and play unit facilitates system upgrades from analog to IP cameras/devices utilizing existing legacy Coax and eliminating the costs and labor associated with installing new network cabling. In addition data transmission is extended up to 610m (over five times the 100m Ethernet maximum length), eliminating the need for repeaters. eBridge units will transmit Composite Video Signal with Ethernet data simultaneously.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Altronix
Manufacturer	Altronix
Category	CCTV>Fibre optics, telemetry receivers, transmitters, transceivers
Model code	eBridge1CT
Data Transceiver	Yes
No of Video Inputs	1 channels
Physical Specifications	Dimensions mm: 64 x 25 x 97 Weight g: 100
Environmental Specifications	Operating Temperature ^oC: -10 ~ +50 C (14 ~ 122 F) Operating Humidity %: 20 ~ 85
Electrical Specifications	Power Consumption: 12VDC/275mA, 24VDC/110mA, 16VAC/375mA, 24VAC/200mA Voltage: 12 ~ 24 V DC / 16 ~ 24 V AC
Additional info	The eBridge1CT - IP over Coax transceiver is designed for use with eBridge1CR, eBridge4CR, and eBridge16CR receivers to enable fast 10/100Base-T Ethernet digital communication over coax cable. This plug and play unit facilitates system upgrades from analog to IP cameras/devices utilizing existing legacy Coax and eliminating the costs and labor associated with installing new network cabling. In addition data transmission is extended up to 610m (over five times the 100m Ethernet maximum length), eliminating the need for repeaters. eBridge units will transmit Composite Video Signal with Ethernet data simultaneously.
