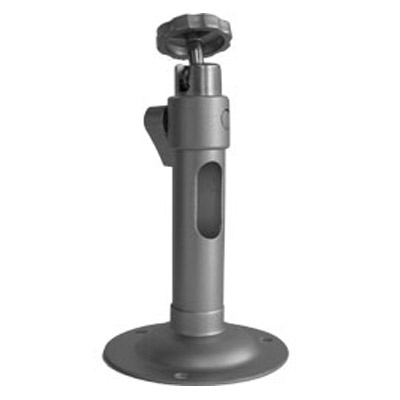

AASSET SM 4 - Wall CCTV camera bracket

Please note: this is a discontinued product.

Go to Replacement product

Features:

Additional info:

Camera mount - 1/4" - 20 UNC thread. Adjustable ball-point head. Rugged metal design. 1/4" camera fixing screw. Concealed cable.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	AASSET
Manufacturer	Aasset Security Ltd
Category	CCTV>CCTV camera brackets
Model code	SM 4 - Wall
Bracket Type	Camera or Housing Brackets
Housing Type	Internal
Mount Type	Wall mount
Physical Specifications	Weight g: 220 Dimensions mm: 90 x 130 mm
Max Load kg	0.6
Housing Material	Steel
Additional info	Camera mount - 1/4" - 20 UNC thread. Adjustable ball-point head. Rugged metal design. 1/4" camera fixing screw. Concealed cable.
