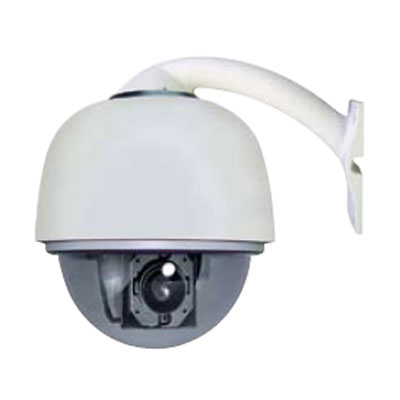

TeleEye DM590 professional 36x day / night speed dome

Product Profile

TeleEye DM590 Series is a professional 36x day / night speed dome for advanced applications such as public utilities, logistic, construction site and ATM monitoring.

TeleEye DM590 Series is equipped with a reliable built-in 36x optical zoom lens that allows you to monitor a scene from any distance. Combined with a 12X digital zoom, its total zoom ratio can be boosted up to 432x for enabling powerful close-ups and capturing the subject details. The high-resolution image sensor with 550 TVL delivers every detail for close surveillance.

TeleEye DM590 provides up to 8 privacy zone maskings to mask out any undesired areas on screen for further protection.

TeleEye DM590 Series allows full colour surveillance during day-time down to 0.1 Lux operation. The speed dome switches to operate in B&W mode to increase its sensitivity for every low light to 0.01 Lux in the night time.

TeleEye DM590 Series:

DM597 (indoor) & DM599 (outdoor)

Features include:

  • 1/4" colour CCD
  • Resolution: 480 (day) / 550 (night) TVL
  • Day / night minimum illumination: 0.01 Lux
  • 128 presets, 6 patrols, 3 patterns
  • 432x zoom; optical: 36X, digital: 12X
  • 8 privacy zone maskings
  • IP66 weather proof standard (DM599 only)
  • OSD menu


  • DM56-CL - Recessed ceiling mount fixture
  • DM56-PD - Pendant mount bracket
  • DM88-PL - Pole mount bracket
  • DM88-CN - Corner mount bracket
  • DM56-VRC - Vandal resistant cover
  • RX-KB02 - TeleEye DM keyboard with joystick
Read more

Technical Specification

Make TeleEye
Manufacturer TeleEye Europe Ltd.
Model code DM599
Series DM590 Series
Chip Inch Size 1/4
Colour Type Colour
Resolution TVL 550 (night), 480 (day)
Sensitivity lux 0.01
Indoor/Outdoor Outdoor
Presets 128 presets, 6 patrols, 3 patterns
Zoom Ratio 432x (optical: 36x / digital: 12x)
Environmental Specifications Protection: IP66
Additional info

8 privacy zone maskings. OSD menu. Auto-scan: 1.
