Easy Alignment wit visual and audible Indicator Light reduction filter Max 99% beam blockage Attractive slender design allows to harmonize with any type of architechture

Early detection with high mount sensors OPTEX’s core philosophy is to detect intrusion before individuals break into the property or building. Early warning and detection is the best way to prevent crime and QX Infinity series complements OPTEX’s extensive choice of short-range outdoor PIRs by bringing a family of compact outdoor detectors – PIR and dual-technology - providing 12m detection area, up to 120° in width. A particular benefit of this series is that the sensors are specifically designed to be installed at heights of up to 2.7m, discreetly fitting into any residential or commercial buildings while keeping safe out of the reach from vandals. Detection analysis to filter out false alarms The new Quad technology features a pyro element that has been redefined by OPTEX and supports a greater performance with a double layered detection in a compact design. The QXI series features improved Super Multi-Dimensional Analysis (SMDA) logic and Double Conductive Shielding for even more reliable sensing capabilities and greater tolerance against light and RFI. It allows for greater immunity against pets and can also be installed as a low mount PIR detector to create a ‘pet alley’ and further reduce the likelihood of nuisance alarms. Compact design and easy installation Installing the sensor has been made simple with an easy to open/close front cover. Other features include an Automatic Walk Test Mode, which automatically starts when the cover is closed and returns to normal mode after three minutes. For extra convenience, power to the wireless models can be shared through a common battery (CR123A) to the transmitter in the base of the device which can easily be swapped out/replaced when the need arises. The QXI series includes four models: Wired models - QXI-ST 120°, 12m, wired, standard- QXI-DT 120°, 12m, wired, dual-technology, with an anti-blocking feature to detect intruders attempting to deliberately mask the detector Battery-operated (wireless) models - QXI-R 120°, 12m, wireless, standard- QXI-RDT 120°, 12m, wireless, dual-technology The QXI series is the ideal solution to protect the approach to warehouse and commercial buildings, driveways, houses and gardens. The sensors will trigger both intruder alarms and CCTV.

Optex CDX-DAM is a PIR/microwave indoor detector with IR anti-masking, quad zone logic, double conductive shielding, LED remote control terminal, digital active IR anti-masking and plug-in EOL. This PIR detector is EN 50131-2-4: 2008 compliant.

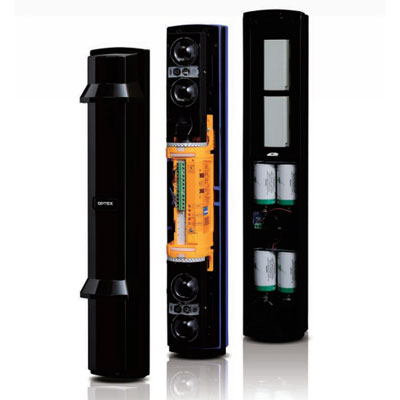

Optex SL-350QFRi is a wireless active infrared beam detector with 4 channel frequency selection and pre-fitted Inovonics wireless transmitter. It also features sniper viewfinder for easy alignment.

Optex VXI-DAM is a PIR micro-wave technology detector with 12m wide angle twin sensor, digital double layer detection, advanced SMDA target recognition detection circuit and IP55 weather protection. The combination of passive-infrared and micro-wave technology gives an ultimate stability in more challenging enviroment where the detector will be exposed to strong sun light or light from the traffic.

Optex SL-350QNR is a quad beam wireless active infrared detector suitable to use with most wireless transmitter. it also features 100 m wireless active beams, sniper viewfinder for easy alignment, and triple tamper function.

Intelligent PIR detection system Can be integrated with most VMS platforms Two independent detection zones far/near Active infrared antimasking and vandal-resistant

The BX Shield is a series of curtain outdoor motion sensors with up to 12m detection range on each side. Ideal for the detection of people in the immediate boundary of your home or office building, the outdoor detectors feature four PIRs, two on each side. The left and right detection area can be set up completely independently from each other. The BXS-RAM is the wireless bi-colour model with anti-masking.  Independent left/right motion detection The outdoor motion sensor’s detection range, sensibility and alarm output can be set independently on the left and the right. The detection distance can easily be set at 2.5m, 3.5m, 6m, 8.5m to 12m on each side, and the sensitivity can be set from low to extremely high, detecting as small a difference in temperature as 1 degree Celsius. The BX Shield can be easily connected to a fixed dome CCTV camera to send a visual alarm when people enter the immediate boundary of the premises. Versatile design  The BX Shield curtain sensor has been designed with the user in mind. A 90-degree unlocking system allows easy access to the settings area, while a spirit level helps to fix the sensor on straight. Black and silver face covers are available, enabling the outdoor curtain sensor to blend into its environment. Four PIRs in one sensor Why two PIR in each side? - To offer the best performance needed in an outdoor environment. On each side, the BX Shield motion sensor features two passive infrared beams; one pointing towards the floor and one pointing away from the sensor. Both beams need to trigger to confirm the detection. This system will ignore small to medium-sized animals such as dogs and detect only people.  Applications Buildings Perimeters Approach House Key features Wireless curtain PIR up to 12m per side with anti-masking Completely independent detection setting Versatile and easy-to-install design Not affected by environment or small animals Connect to new or existing wireless alarm panel The BXS-RAM is a battery-powered sensor (no cabling requested) in which most wireless transmitters available in the market can be fitted. This enables the sensor to connect to an existing or new wireless alarm panel.  The anti-masking function ensures that if the alarm panel will be notified if someone has sprayed, covered the sensor or changed its position.

Optex AX-200TFR is a selectable beam frequency photoelectric detector that features triple tamper functions, intermittent output function, and battery saving time function for wireless trasnmitters.

Optex OML-DAM is a quad technology PIR detector that features suitable for any applications. Its stylish single housing design offers unobtrusive installation and a uniform appearance across the range. Please note this model has been replaced by the dual tech indoor PIR sensor CDX-DAM

Selectable wide and narrow detection with one sensor Simply flip the lens to change the shape of the detection area best suited to the installation site. Superior detection performance A new bespoke pyro has been specifically designed to create human-size detection areas and optimise detection sensitivity. For industry leading performance, FlipX Advanced sensors have a unique algorithm (SMDA) which can learn from the environment to discriminate popular causes of false alarms. Super high sensitivity Sensitivity can be set to extremely high to ensure consistent detection even when the temperature difference between the human body and the environment is very small. IR Anti-masking Dual anti-masking feature that protects individually both PIR and microwave sensors generating an alert if they are covered. Double conductive shielding OPTEX patented double conductive shielding allows FlipX Advanced sensors to block RFI and the visible light disturbance from sunlight or strong lamps, to focus on what matters. Flexible mounting height and selectable look-down area A selectable ‘Down zone’ switch allows to create a look down zone below the sensor. And its flexible mounting height between 2 - 3 m means they seamlessly blend into the aesthetics of buildings with higher ceilings.

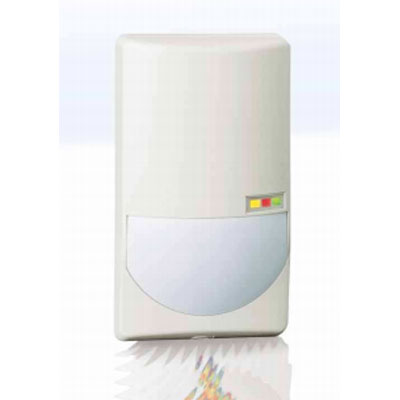

Optex DX-60 is a quad technology PIR detector that features microwave are shaping technology, spherical lens design, and self checking functions.

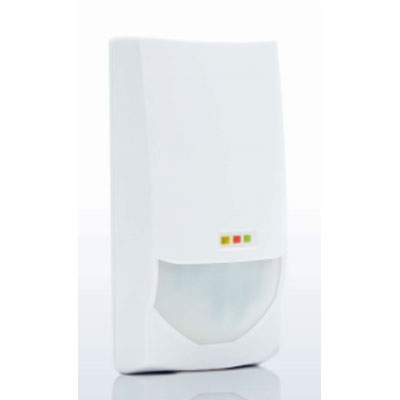

Optex OML-AM is a quad technology PIR detector that features suitable for any applications. Its stylish single housing design offers unobtrusive installation and a uniform appearance across the range. Please note this  model has been replaced by the grade 3 indoor PIR CDX-AM

All-round outdoor intrusion detection High mount, less visible to intruders and out of reach from vandals Sleek and compact design, less intrusive to its surroundings Reliable detection not affected by environment or small animals Double conductive shielding to filter out out visible light and RFI disturbance

All-round outdoor intrusion detection High mount, less visible to intruders and out of reach from vandals Sleek and compact design, less intrusive to its surroundings Reliable detection not affected by environment or small animals Double conductive shielding to filter out out visible light and RFI disturbance

Redscan mini-Pro is a high-performance laser scan sensor that can identify an object's size, distance from the sensor, and speed. In normal mode, a single sensor can be used to cover a 20 x 20 m detection area, ensuring a robust intrusion alert system for both indoor and outdoor environments.Adopting newly developed infrared LED lighting technology and a full-HD camera, Optex's latest laser scan sensor offers improved video-based confirmation functionality for increased ease of use and greater usability in various environments. Features Vertical or horizontal mount is selectable REDSCAN mini-Pro series can be installed vertically, horizontally. Selectable installation method REDSCAN mini-Pro series have 3 installation methods as Wall, Ceiling and Pole. You can select either method to match the installation site. Built-in FHD Camera and IR LED RLS-2020V has a build-in FHD camera with IR LED providing clear image in 1080P resolution. The pre and post alarm camera images are recorded in internal memory of the unit (alarm logs : 500 events) and can be played back for verification. Map Screen Display Both RLS-2020V and 2020A can stream live images instead of video images from the camera. Any photo or image can be used to overlap the detection area. Connectivity and interoperability Redscan mini-Pro is an ONVIF profile S compliant sensor allowing it to send alarm outputs via the ONVIF protocol to any ONVIF compliant networked video system or IP network devices. The video stream of the assistance camera could also be provided to the Video Management Software platform via the ONVIF RTSP protocol. To assure a secure network communication, the REDSCAN Pro is compliant with HTTPS, SNMPv3 protocols. Dynamic Event Filtering A function that determines an alarm after combining object detections in 2 separate areas (Alert area and Judgment area).

Intelligent 12m PIR with animal immunity Active Infrared antimasking Easy set up incl. automatic walk test mode Versatile design- choice of housing and front covers

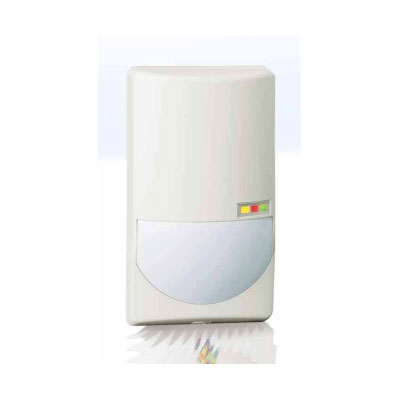

Optex DX-40PLUS is a quad technology PIR detector that features microwave technology and spherical lens design.

The BX Shield is a series of curtain outdoor motion sensors with up to 12m detection range on each side. Ideal for the detection of people in the immediate boundary of your home or office building, the outdoor detectors feature four PIRs, two on each side. The left and right detection area can be set up completely independently from each other. The BXS-RAM is the wireless bi-colour model with anti-masking.  Independent left/right motion detection The outdoor motion sensor’s detection range, sensibility and alarm output can be set independently on the left and the right. The detection distance can easily be set at 2.5m, 3.5m, 6m, 8.5m to 12m on each side, and the sensitivity can be set from low to extremely high, detecting as small a difference in temperature as 1 degree Celsius. The BX Shield can be easily connected to a fixed dome CCTV camera to send a visual alarm when people enter the immediate boundary of the premises. Versatile design  The BX Shield curtain sensor has been designed with the user in mind. A 90-degree unlocking system allows easy access to the settings area, while a spirit level helps to fix the sensor on straight. Black and silver face covers are available, enabling the outdoor curtain sensor to blend into its environment. Four PIRs in one sensor Why two PIR in each side? - To offer the best performance needed in an outdoor environment. On each side, the BX Shield motion sensor features two passive infrared beams; one pointing towards the floor and one pointing away from the sensor. Both beams need to trigger to confirm the detection. This system will ignore small to medium-sized animals such as dogs and detect only people.  Applications Buildings Perimeters Approach House Key features Wireless curtain PIR up to 12m per side with anti-masking Completely independent detection setting Versatile and easy-to-install design Not affected by environment or small animals Connect to new or existing wireless alarm panel The BXS-RAM is a battery-powered sensor (no cabling requested) in which most wireless transmitters available in the market can be fitted. This enables the sensor to connect to an existing or new wireless alarm panel.  The anti-masking function ensures that if the alarm panel will be notified if someone has sprayed, covered the sensor or changed its position.

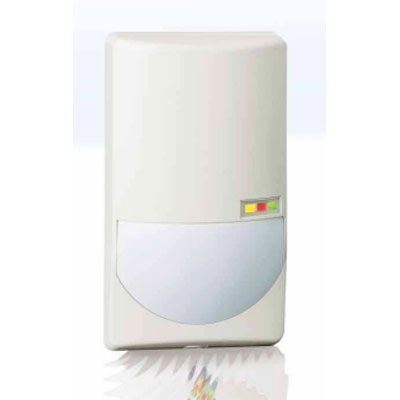

Optex DX-40 is a quad technology PIR detector that features quad zone logic, self checking function, and microwave are shaping technology.

Optex MX-50QZ(BE) is a quad technology PIR detector that creates an integrated detection area.

Intelligent 12m PIR with animal immunity Active Infrared antimasking Easy set up incl. automatic walk test mode Versatile design- choice of housing and front covers

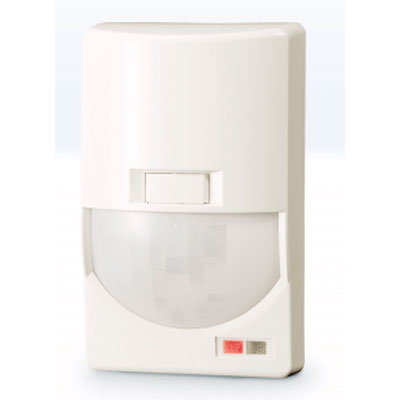

Optex CX-502AMPLUS is a quad technology PIR detector that creates an extremely high vertical zone density and these taller zones cature the entire body mass of a person and enable detection of the smallest temperature contrast between them and the background.

Optex AX-100TFR is an active infrared beam detector that features:   Long life battery (with four SAFT LSH20 batteries which are not included) easy battery replacement triple tamper functions low battery output and LED indication intermittent output function compatible with numerous wireless transmitters

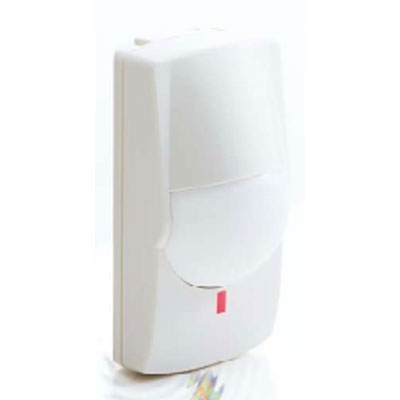

Optex MX-40QZ(BE) is a quad technology PIR detector that creates an integrated detection area.

A single sided two metre 180° wall mount tower Two beams can be fitted per side with a heater Durable construction with extruded aluminium frame and acrylic materials Beams can be mounted at any height and direction in the tower Anti-tamper and full fixing kit for the tower itself supplied

A single sided two metre 180° wall mount tower One beam can be fitted with a heater Durable construction with extruded aluminium frame and acrylic materials Beams can be mounted at any height and direction in the tower Anti-tamper and full fixing kit for the tower itself supplied

Provides 360° unobstructed view for the beams, enabling back to back installation to cover a whole perimeter Mounted at any height/direction in the tower Anti-tamper and full fixing kit supplied Suitable for wired, IP and wireless models
