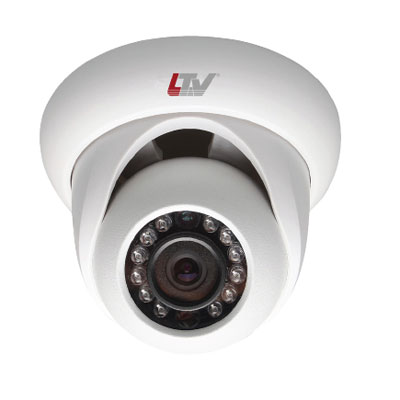

LTV Europe LTV-ICDM1-SD9230L-F3.6 colour monochrome 1MP outdoor dome camera

Technical Specification

Features:
  • Make: LTV Europe
  • Model code: LTV-ICDM1-SD9230L-F3.6
  • Chip Inch Size: 1/3
  • Colour Type: Colour / Monochrome
  • Resolution TVL: 1MP
Read more
Additional info:

LTV Europe LTV-ICDM1-SD9230L-F3.6 is a colour monochrome 1MP outdoor dome camera that features H.264 & MJPEG dual-stream encoding, Max. IR LEDs Length 20m, and 3.6mm fixed lens.

Read more
Make LTV Europe
Manufacturer LTV Europe Sicherheitstechnik GmbH
Model code LTV-ICDM1-SD9230L-F3.6
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution TVL 1MP
Dome Type Static
Sensitivity lux 0.01
Digital (DSP) Yes
Indoor/Outdoor Outdoor
Electrical Specifications Voltage: 12 V DC, PoE
Power Consumption: 4.5 W
Focal length 3.6
Compression H.264B/H.264/MJPEG
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
S/ N (Signal/ Noise) Ratio dB >50
Built-in IR LED Yes
Network Properties Network Protocols: IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP FIlter, QoS
Physical Specifications Dimensions mm: 114 x 86
Weight g: 290
Environmental Specifications Operating Temp oC: -30 ~ +60 C (-22 ~ +140 F)
Operating Humidity %: <95
Protection: IP66
Additional info LTV Europe LTV-ICDM1-SD9230L-F3.6 is a colour monochrome 1MP outdoor dome camera that features H.264 & MJPEG dual-stream encoding, Max. IR LEDs Length 20m, and 3.6mm fixed lens.
