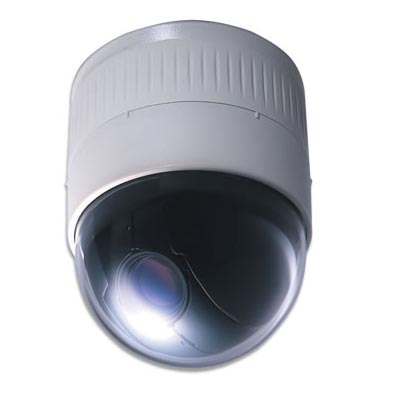

JVC day / night dome camera

Product Profile

Please note: this is a discontinued product.

Go to Replacement product

The new JVC dome camera, part of the EXDR – extended dynamic range – is an enhanced version of the TK-C675BE. Offering a fully functional dome camera with a 27x optical zoom lens, and a host of features including:

480 TVL
A privacy zone
Full systems integration
Day / night capability - B/W pictures
Motion detection alarms
360 degree endless panning
Auto and digital flip
100 presets
RS485 / RS422A

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Technical Specification

Make	JVC
Manufacturer	JVC
Category	CCTV>Dome cameras
Model code	TK-C676BE
Chip Inch Size	1/4 inch
Colour Type	Colour / Monochrome
Resolution TVL	480
Sensitivity lux	0.5 lux
Dome Type	Continuous Rotation
Indoor/Outdoor	Indoor
Mount Type	Ceiling mount
Focal length	3.8 - 103
Rotation Angles^o	360 endless panning
Presets	100
Zoom Ratio	x 27
Environmental Specifications	Protection: IP52
Additional info	Super LoLux 0.5 lux (at colour mode, AGC ON, x2 SENS-UP, VIDEO 25%). Extended Dynamic Range. IR switching capability. Variable pan/tilt speed. Pre-set sequence (Auto Patrol) mode. Auto trace/ Autopan/ Area title. 180° auto flip/digital flip. Easy and one-touch AF. Private Mask/Motion Detection/Auto Black/Built-in Menu. Alarm terminals (4 inputs and 3 outputs).
